FATH
3-way Connection Angle I 30
Part #: 093WE302N06

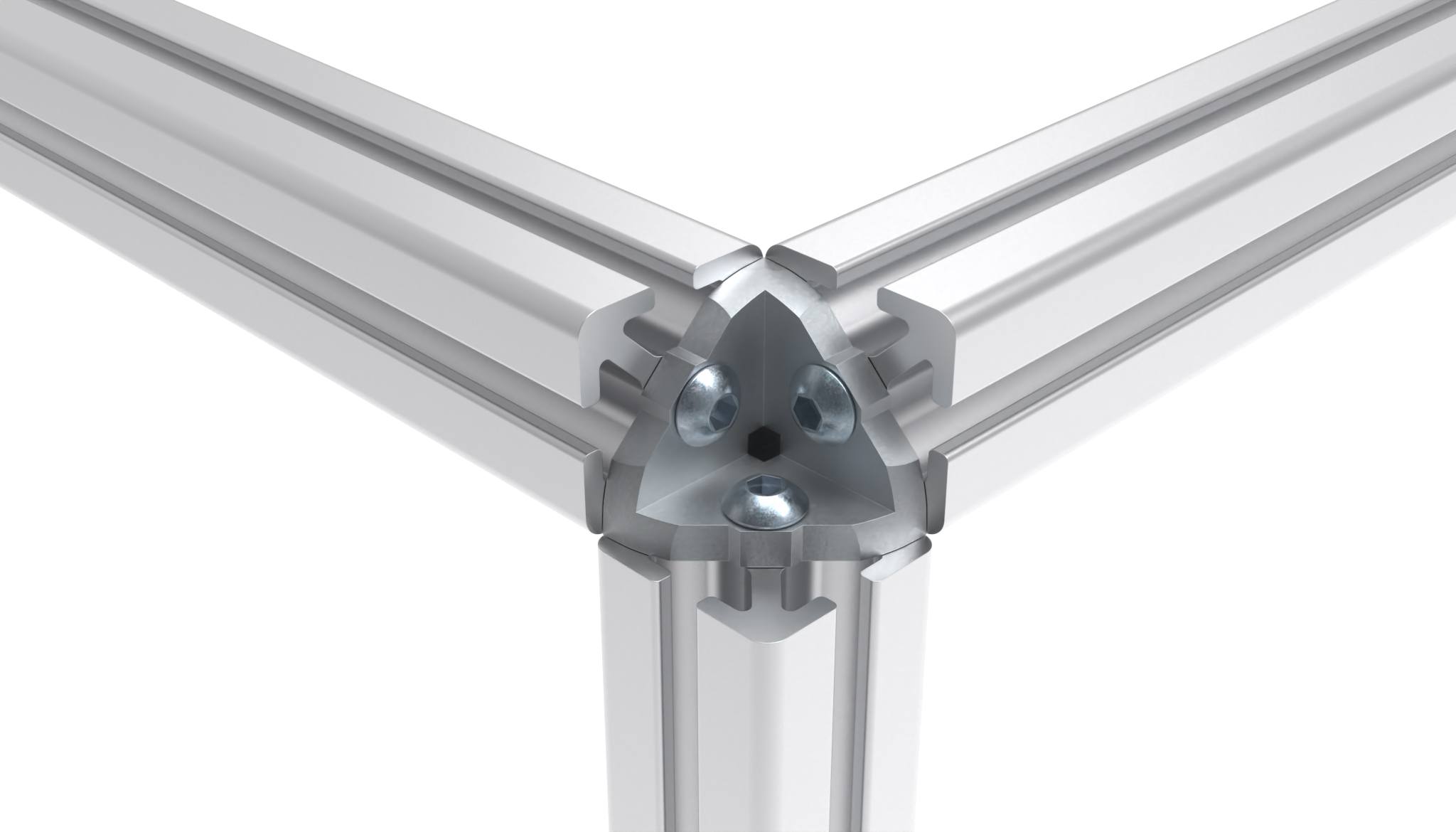

To connect up to three aluminum profiles at right angles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 50 pieces
- Weight
- 39.6 g
- ECLASS
- 23360290
- Category
- Profile 30, 3-way Connection Angles
Description 093WE302N06
- Description
To connect up to three aluminum profiles at right angles
- Material
Zinc die-cast
- Surface
Plain
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 6 |
| Pack Quantity | 50 pieces |
| Model | Zinc die-cast, for profile 30 |

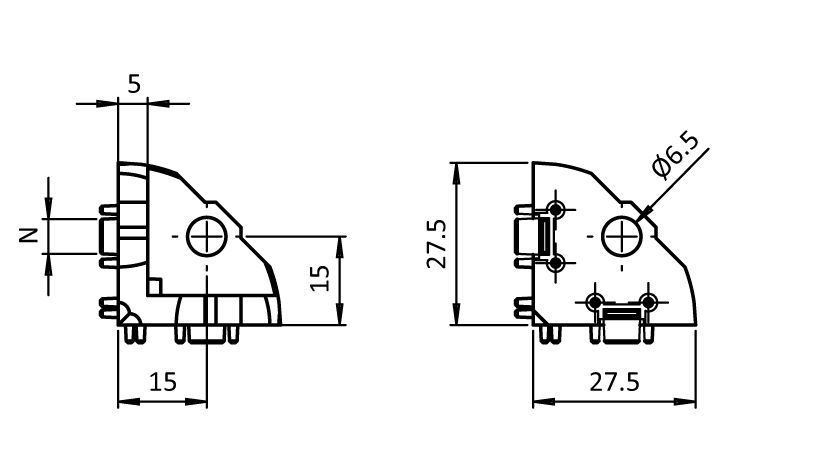

Drawing
From the FATH catalogue (EC-EN, p. 436)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
