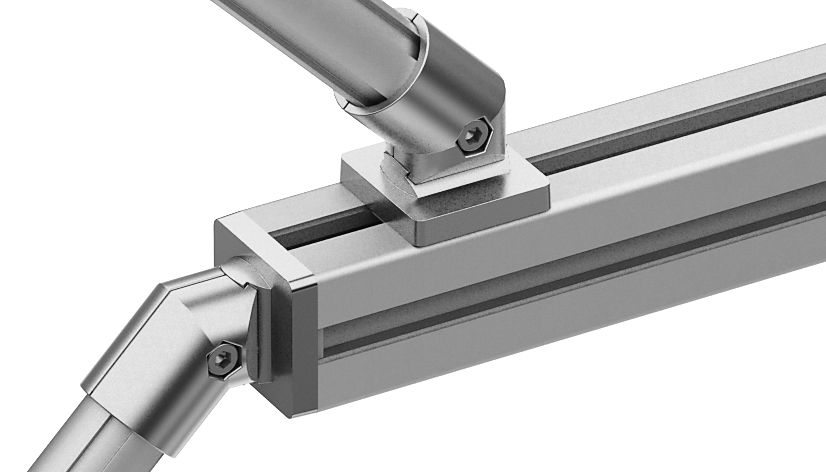

Adapter Plate D28 (Set)
Part #: 099RVAP40S01 · 2 variants
To connect tubular frame profiles with slot 8 or 10 aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 29 g
- ECLASS
- 23360290
- Category
- Connectors D28, Tubular Frame Components
Versions
Select a version — the description and files below follow your selection.
| Part # | A (mm) | ESD | Slot N (mm) | R (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 099RVAP40S01✓ Selected | 40.0 | ESD electrostatical discharging | 8 / 10 | 4.0 | |
| 099RVAP45S01 | 45.0 | ESD electrostatical discharging | 8 / 10 | 3.0 |
Description 099RVAP40S01
- Description
To connect tubular frame profiles with slot 8 or 10 aluminum profiles
- Fastening
With pan-head-screw DIN EN ISO 7380 (DIN 34805) - M8
- Material
Adapter plates: Aluminum die-cast
Centering piece: Zinc die-cast
- Set
1 adapter plate,
2 locating pins for slot 8 and 10
- Surface
Plain
- Tip
Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01
*Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8, Slot 10 |
| Modular Dimension | Modular Dimension D28 |
| Product Feature | ESD |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

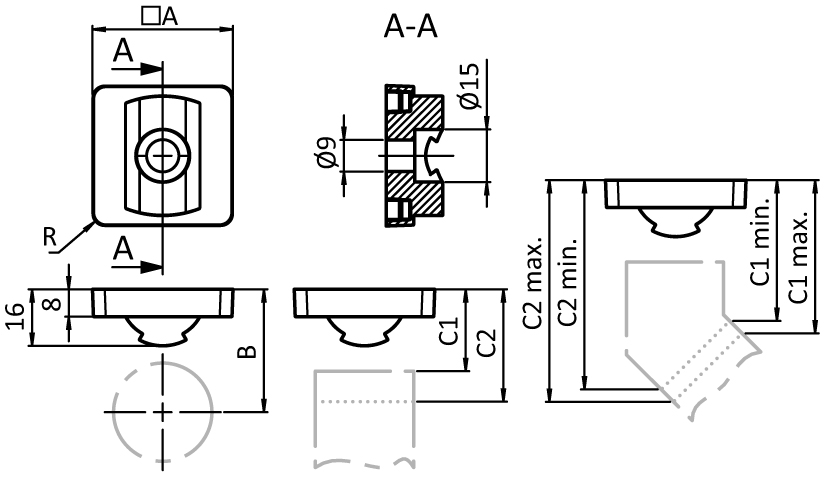

Drawing
From the FATH catalogue (EC-EN, p. 1057)
