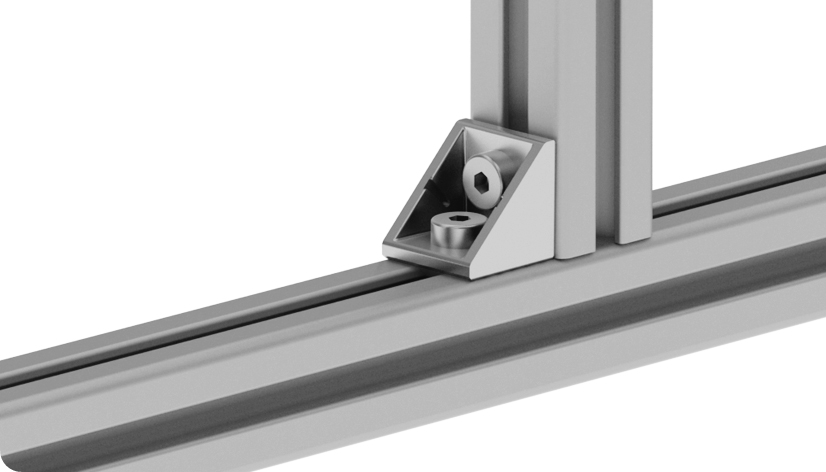

Alu Connection Angle 20

Part #: 093W203 · 9 variants

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Part #	Version	Profile	B (mm)	Surface	Color	Slot N (mm)
093W203✓ Selected	-	-	4.3	Plain	-	-
093W203N05	-	-	4.3	Plain	-	5
093W203N05S03	-	-	5.3	Plain	-	5
093W203N06	-	-	4.3	Plain	-	6
093W203N06S01	incl. assembly set	B	4.3	Plain	-	6
093W203N06S03	-	-	4.3	Powder coated	Alu color	6
093W203N06S04	incl. assembly set	B	4.3	Powder coated	Alu color	6
093W203N06S05	-	-	5.3	Plain	-	6
093W203S01	-	-	5.3	Plain	-	-

Assembly Set 1

2 hammer nuts - slot 6 - M4,

2 screws DIN 7984 - M4 x 8

Assembly Set 2

4 hammer nuts - slot 6 - M4,

4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8

Color

Angle: Alu color

Description

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material

Angle: Aluminum die-cast

Assembly set: Steel

Specials

Other surfaces, other colors on request

Surface

Angle: Plain / Powder coated

Assembly set: Zinc plated

Tip

Compatible Cover Cap see 093WA203

Profile Type	Profile Type B, Profile Type I
Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
Model	Aluminum die-cast, profile 20 and up

From the FATH catalogue (EC-EN, p. 385)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.

Referenced in the description — nuts, plates, caps, assembly sets.
