Alu Connection Angle 30
Part #: 093W303 · 11 variants
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 19.8 g
- ECLASS
- 23360290
- Category
- Alu Connection Angles · Connectors for FIFO Monorail Rails
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | Surface | Color | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 093W303✓ Selected | - | - | Plain | - | - | |
| 093W303N06 | - | - | Plain | - | 6 | |
| 093W303N08 | - | - | Plain | - | 8 | |
| 093W303N08S09 | With assembly set 2 | B | Plain | - | 8 / 10 | |
| 093W303N08S11 | With assembly set 1 | B | Plain | - | 8 | |
| 093W303N08S12 | - | - | Powder coated | Alu color | 8 | |
| 093W303N08S13 | With assembly set 1 | B | Powder coated | Alu color | 8 | |
| 093W303N08S14 | With assembly set 2 | B | Powder coated | Alu color | 8 / 10 | |
| 093W303N10 | - | - | Plain | - | 10 | |
| 093W303N10S02 | With assembly set 3 | B | Plain | - | 10 | |
| 093W303N10S03 | With assembly set 3 | B | Powder coated | Alu color | 10 |
Description 093W303
- Assembly Set 1
2 hammer nuts - slot 8 - M6,
2 screws DIN 7984 - M6 x 14
- Assembly Set 2
1 hammer nut - slot 8 - M6,
1 screw DIN 7984 - M6 x 14,
1 hammer nut - slot 10 - M6,
1 screw DIN 7984 - M6 x 18
- Assembly Set 3
2 hammer nuts - slot 10 - M6,
2 screws DIN 7984 - M6 x 18
- Color
Angle: Alu color
- Description
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
- Material
Angle: Aluminum die-cast
Assembly set: Steel
- Specials
Other surfaces, other colors on request
- Surface
Angle: Plain / Powder coated
Assembly set: Zinc plated
- Tip
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA303S02
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, profile 30 and up |

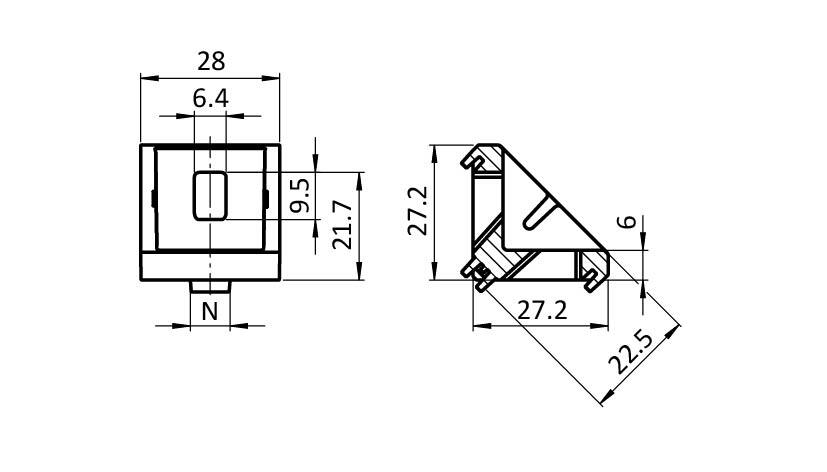

Drawing
From the FATH catalogue (EC-EN, p. 387)
