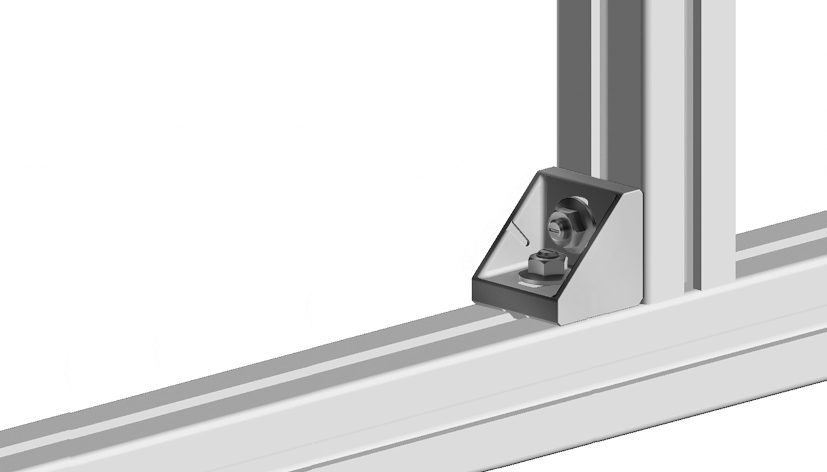

Alu Connection Angle 43 x 42
Part #: 093W422N10 · 2 variants
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 54.2 g
- ECLASS
- 23360290
- Category
- Alu Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|
| 093W422N10✓ Selected | - | - | 10 | |
| 093W422N10S01 | incl. assembly set | B | 10 |
Description 093W422N10
- Assembly Set
2 hammer head screws - slot 10 - M8 x 25,
2 flange nuts M8
- Description
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
- Material
Aluminum die-cast
- Specials
Other surfaces, other colors on request
- Surface
Angle: Plain
Assembly set: Zinc plated
- Tip
Compatible Cover Cap see 093WA422
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 10 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, profile 45 and up |

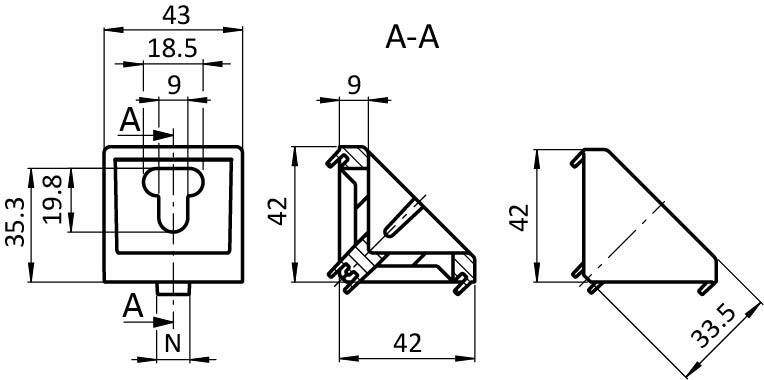

Drawing
From the FATH catalogue (EC-EN, p. 399)
