Alu Connection Angle 45 T
Part #: 093W423N10 · 2 variants

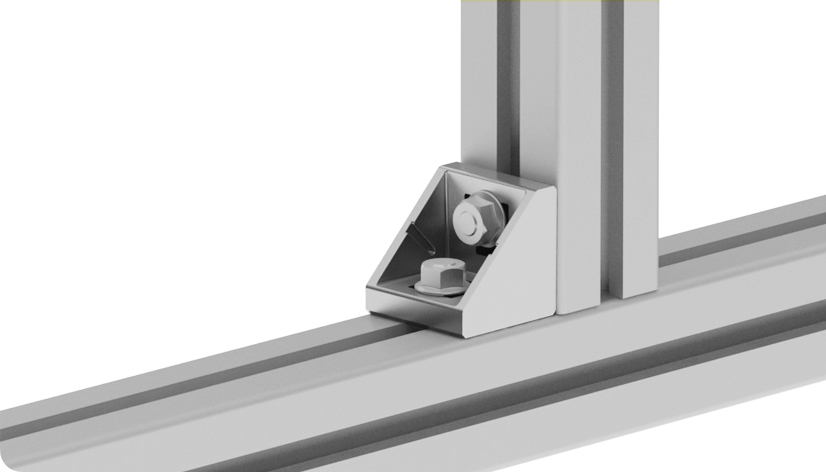

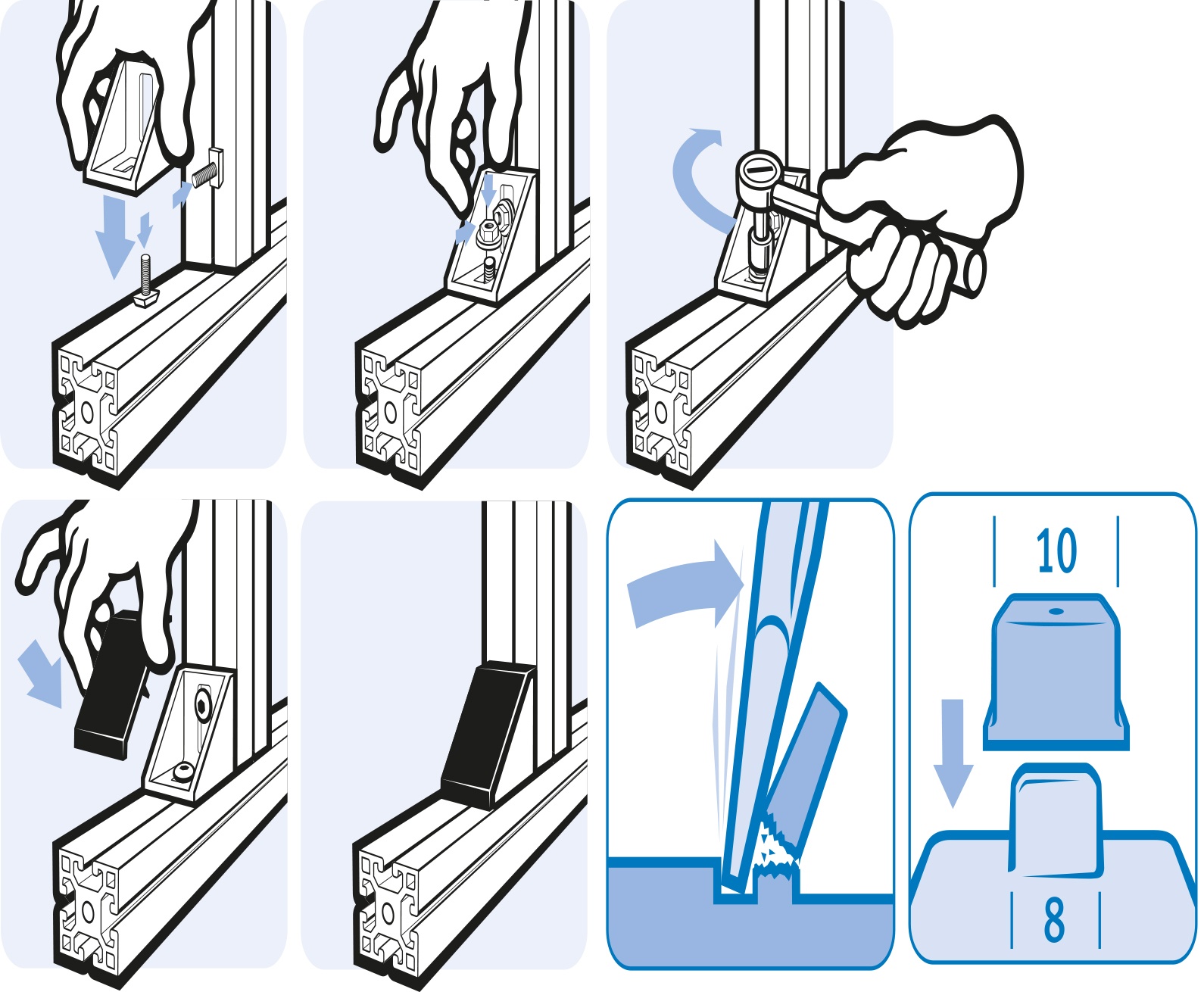

To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 54.3 g
- ECLASS
- 23360290
- Category
- Alu Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|
| 093W423N10✓ Selected | - | - | 10 | |
| 093W423N10S02 | incl. assembly set | B | 10 |
Description 093W423N10
- Assembly Set
2 hammer head screws - slot 10 - M8 x 25,
2 flange nuts M8
- Color
Alu color
- Description
To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover cap
- Material
Angle: Aluminum die-cast
Assembly set: Steel
- Specials
Other surfaces, other colors on request
- Surface
Angle: Plain
Assembly set: Zinc plated
- Tip
Compatible Flat Cover Cap see 093WA421S02
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 10 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, profile 45 and up |

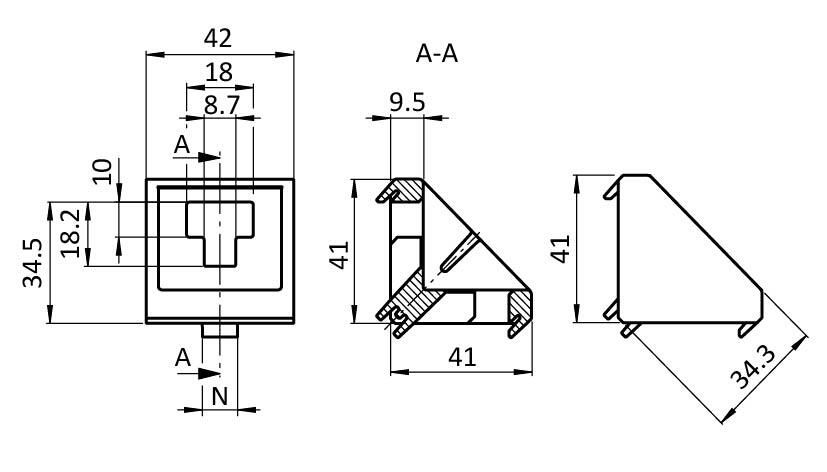

Drawing
From the FATH catalogue (EC-EN, p. 397)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Product family
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
