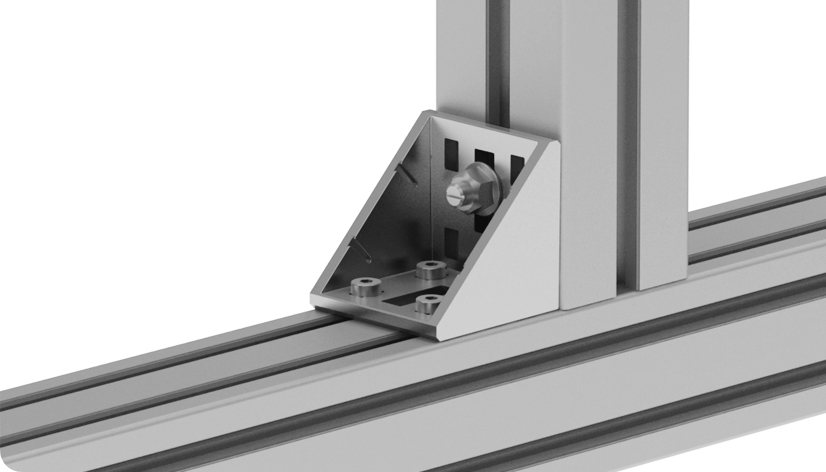

Alu Connection Angle 60
Part #: 093W603 · 9 variants
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 103 g
- ECLASS
- 23360290
- Category
- Alu Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | Surface | Color | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 093W603✓ Selected | - | - | Plain | - | - | |
| 093W603N08 | - | - | Plain | - | 8 | |
| 093W603N08S01 | With assembly set 1 | B | Plain | - | 8 | |
| 093W603N08S02 | With assembly set 2 | B | Plain | - | 8 | |
| 093W603N08S03 | - | - | Powder coated | Alu color | 8 | |
| 093W603N10 | - | - | Plain | - | 10 | |
| 093W603N10S01 | With assembly set 3 | B | Plain | - | 10 | |
| 093W603N10S03 | With assembly set 3 | B | Powder coated | Alu color | 10 | |
| 093W603N10S04 | - | - | Powder coated | Alu color | 10 |
Description 093W603
- Assembly Set 1
8 hammer nuts - slot 8 - M6,
8 screws DIN 7984 - M6 x 14
- Assembly Set 2
4 hammer nuts - slot 8 - M6,
4 screws DIN 7984 - M6 x 14,
1 hammer screw - slot 10 - M8 x 20,
1 flange nut - M8,
2 plastic adapers - slot 8 to slot 10
- Assembly Set 3
2 hammer head screws - M8 x 20,
2 flange nuts - M8
- Color
Alu color
- Description
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
- Material
Angle: Aluminum die-cast
Assembly set: Steel
- Specials
Other surfaces, other colors on request
- Surface
Angle: Plain / Powder coated
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, profile 60 and up |

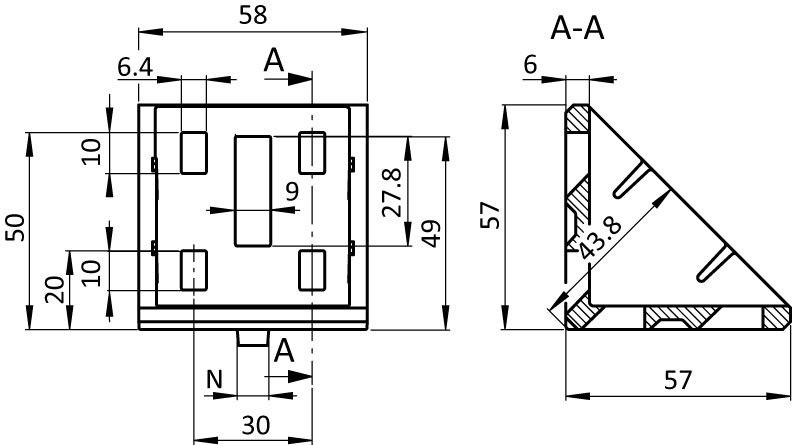

Drawing
From the FATH catalogue (EC-EN, p. 401)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
