Alu Connection Angle 90
Part #: 093W901 · 6 variants
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 339 g
- ECLASS
- 23360290
- Category
- Alu Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | Surface | Color | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 093W901✓ Selected | - | - | Plain | - | - | |
| 093W901N08 | - | - | Plain | - | 8 | |
| 093W901N10 | - | - | Plain | - | 10 | |
| 093W901N10S02 | incl. assembly set | B | Plain | - | 10 | |
| 093W901N10S06 | - | - | Powder coated | Alu color | 10 | |
| 093W901N10S07 | incl. assembly set | B | Powder coated | Alu color | 10 |
Description 093W901

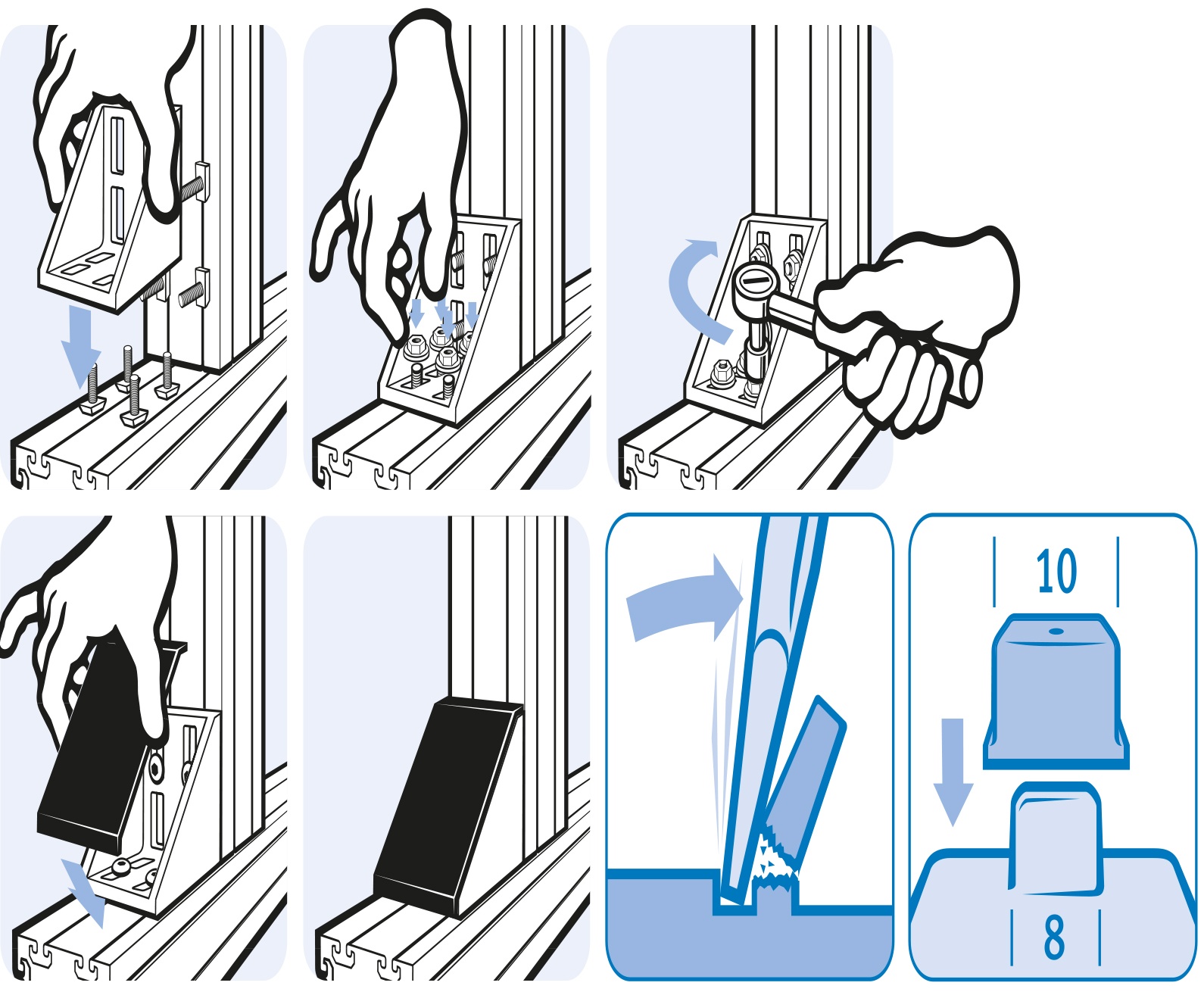

- Assembly Set
8 hammer head screws - M8 x 25,
8 flange nuts M8
- Color
Alu color
- Description
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
- Material
Angle: Aluminum die-cast
Assembly set: Steel
- Specials
Other surfaces, other colors on request
- Surface
Angle: Plain / Powder coated
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, profile 90 and up |

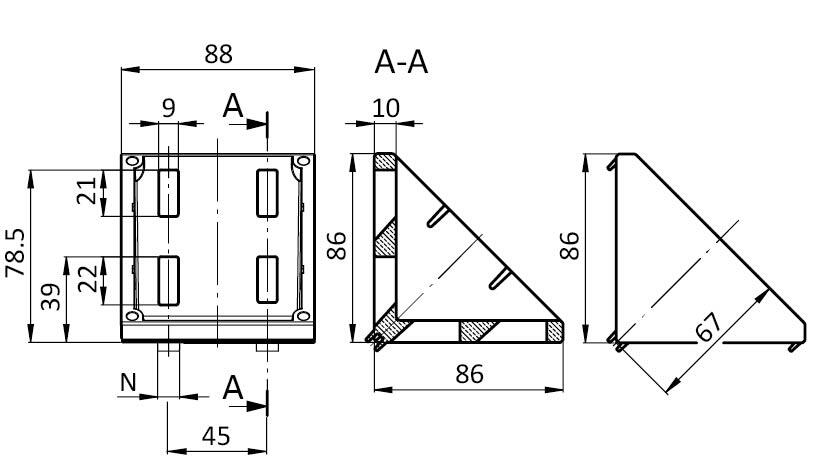

Drawing
From the FATH catalogue (EC-EN, p. 403)
