Alu Connection Angle I40 M Length/Cross (Set)
Part #: 093W4010N08S01

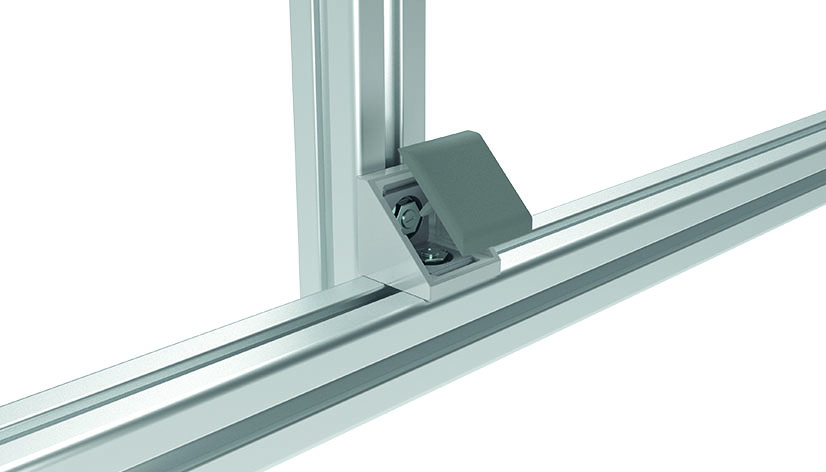

To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 114 g
- ECLASS
- 23360290
- Category
- Alu Connection Angles · Connectors for Guiding Rails FIFO
Description 093W4010N08S01
- Color
Angle: Alu color
Cover cap: Gray≈ RAL 7042
Ring: Black
- Description
To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap
- Material
Angle: Aluminum die-cast
Cover cap: Plastic PA, glass fiber reinforced,
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Insert: Zinc die-cast # Ring: Plastic PE
- Set
1 angle
2 magnet rhombus screws
2 countersunk nuts M8
1 cover cap
- Surface
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Application Area | Industrial Work Stations, Shopfloor |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

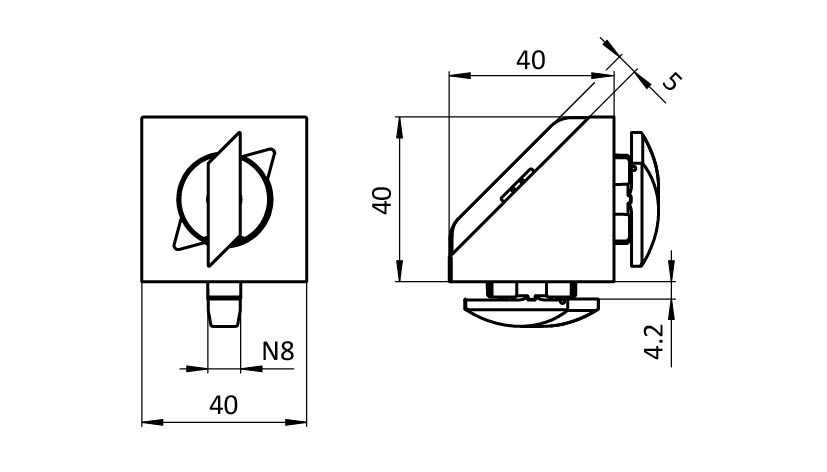

Drawing
From the FATH catalogue (EC-EN, p. 392)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
