Aluminum Die-cast Hinge 45
Part #: 095047
To hinge panels or aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 56 g
- ECLASS
- 23219090
- Category
- Aluminum Die-cast Hinges 45
Description 095047
- Description
To hinge panels or aluminum profiles
- Fastening
From the front, using M6 countersunk screws
- Material
Wings: Aluminum die-cast
Pin: Stainless steel
- Specials
Other surfaces, other colors on request
- Surface
Nickel-plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Non-detachable |

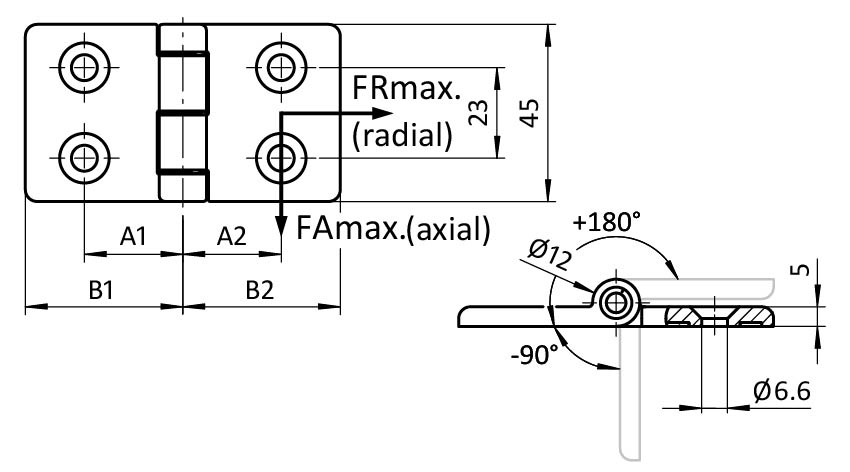

Drawing
From the FATH catalogue (EC-EN, p. 223)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
