Angle Block 40/45
Part #: 094A4045 · 2 variants
To attach panels to aluminum profiles; especially for high load bearing on the panels
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 48.7 g
- ECLASS
- 23360492
- Category
- Angle Blocks
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | M | Slot N (mm) | Set | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 094A4045✓ Selected | - | M5 | 10 | - | |
| 094A4045S01 | B | M5 | 10 | incl. assembly set |
Description 094A4045
- Assembly Set
2 hammer screws M8 x 25,
2 flange nuts M8
- Description
To attach panels to aluminum profiles; especially for high load bearing on the panels
- Material
Aluminum die-cast
- Specials
Other surfaces, other colors on request
- Surface
Plain
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 10 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, profile 40 + 45 |

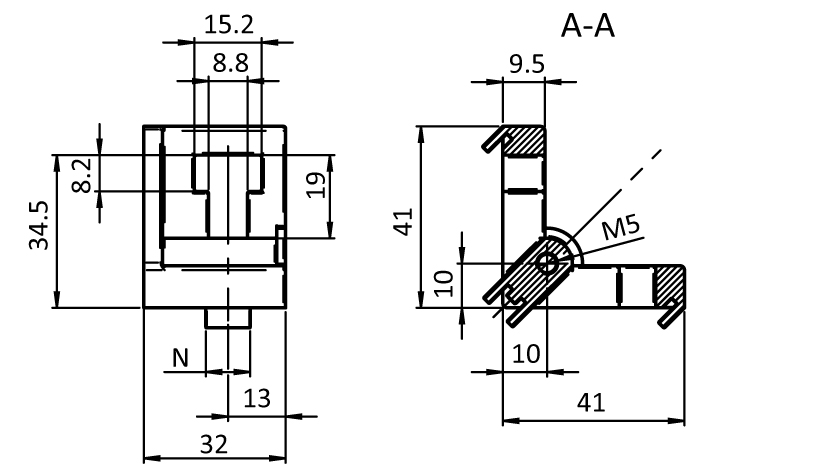

Drawing
From the FATH catalogue (EC-EN, p. 936)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
