FATH

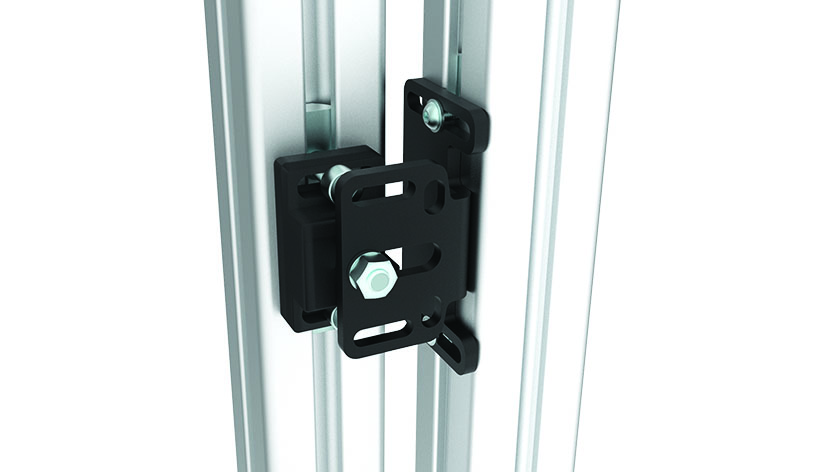

Angle Bracket for Ball Catch 30 / Safety Switch AZ 16
Part #: 093043WS02

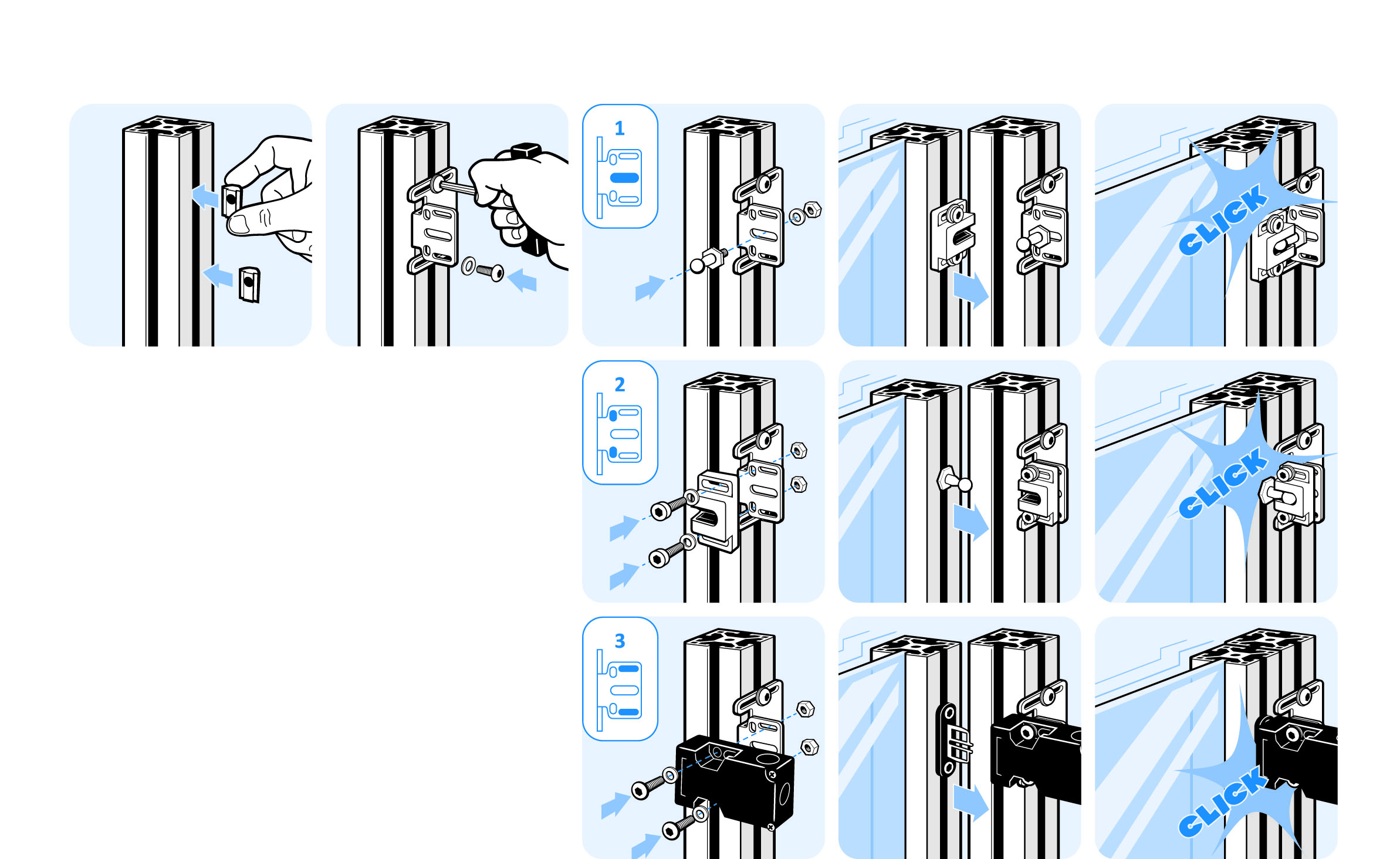

To flexibly position the housing or ball pin of the ball catch 30 or a safety switch Schmersal AZ 16
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 111 g
- ECLASS
- 23250192
- Category
- Ball Catches
Description 093043WS02
- Color
Black
- Description
To flexibly position the housing or ball pin of the ball catch 30 or a safety switch Schmersal AZ 16
- Material
Steel
- Specials
Other sizes, other surfaces on request
- Surface
Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Steel |

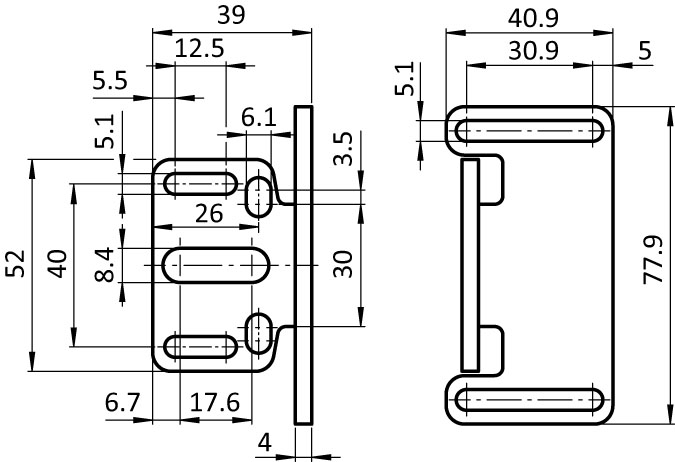

Drawing
From the FATH catalogue (EC-EN, p. 676)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
