FATH
Angle Connector 2D28 (Set)
Part #: 099RV2890QS01
To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled set
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 134 g
- ECLASS
- 23360290
- Category
- Connectors D28, Tubular Frame Components
Description 099RV2890QS01
- Description
To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled set
- Material
Connector: Aluminum die-cast
Assembly set: Steel
- Set
2 components for angle connector 2D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6
- Surface
Connector: Plain
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Modular Dimension | Modular Dimension D28 |
| Product Feature | ESD |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

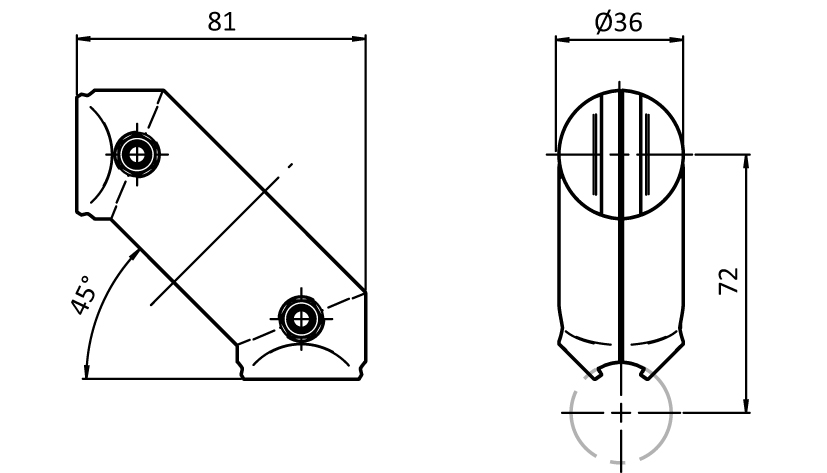

Drawing
From the FATH catalogue (EC-EN, p. 1051)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
