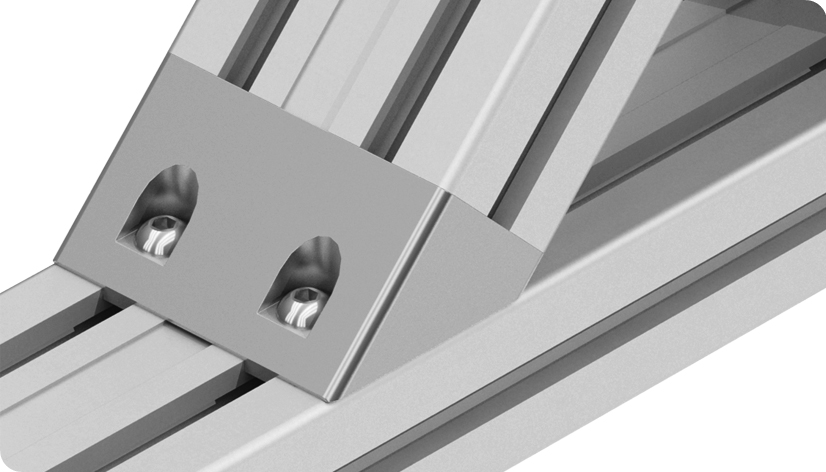

Angle Connector 90 x 45, 45°
Part #: 093WS90145N10 · 2 variants
To mount a profile as bracing at a 45° angle without miter cut
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 216.2 g
- ECLASS
- 23360290
- Category
- for Profile 45, Angle Connectors 45°
Versions
Select a version — the description and files below follow your selection.
| Part # | Surface | Color | Slot N (mm) | for Screw | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 093WS90145N10✓ Selected | Powder coated | Alu color | 10 | M12 | |
| 093WS90145N10R | Plain | - | 10 | M12 |
Description 093WS90145N10
- Description
To mount a profile as bracing at a 45° angle without miter cut
- Material
Aluminum die-cast
- Specials
Other surfaces, other colors on request
- Surface
Plain / powder coated
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

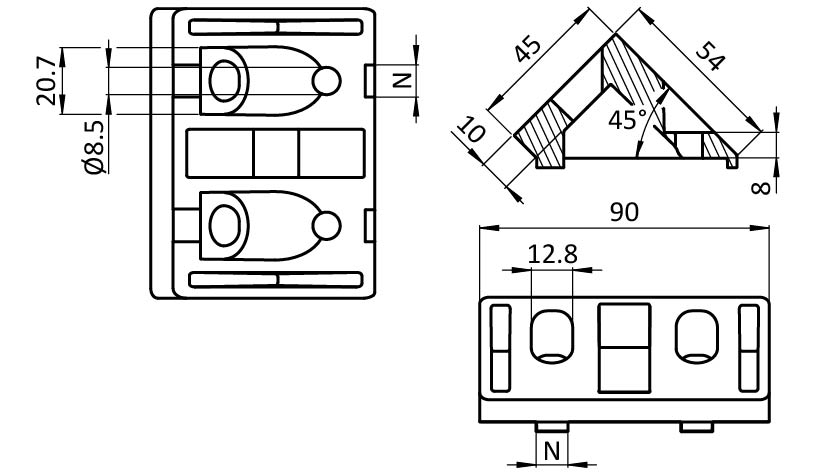

Drawing
From the FATH catalogue (EC-EN, p. 555)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
