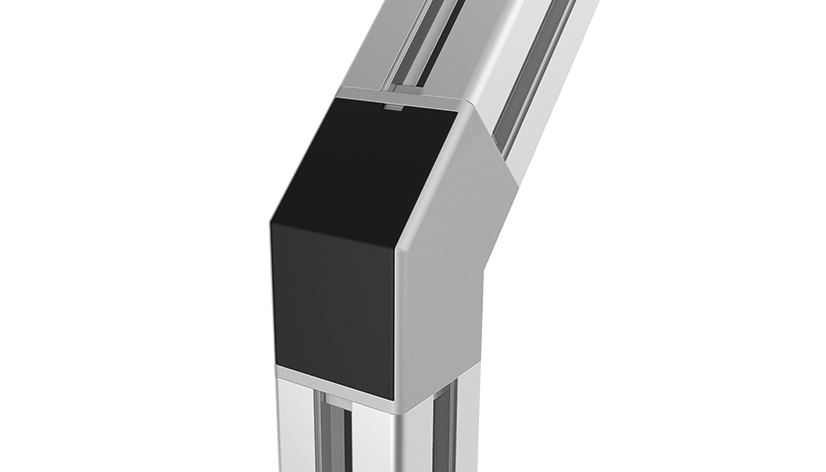

Angle Connector B 40, 45° (Set)

Part #: 093WS40345N10RS01 · 2 variants

To mount a profile as bracing at a 45° angle without miter cut

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Part #	Version	Surface	Color	Slot N (mm)	Add 1 pc to enquiry
093WS40345N10RS01✓ Selected	Cover cap: Black	Plain	-	10
093WS40345N10S03	Cover cap gray ≈ RAL 7004	Powder coated	Alu color	10

Color

Cover caps: Black / gray

Description

To mount a profile as bracing at a 45° angle without miter cut

Material

Angle connector: Aluminum die-cast

Cover caps: Plastic PA, glass fiber reinforced

Assembly set: Steel

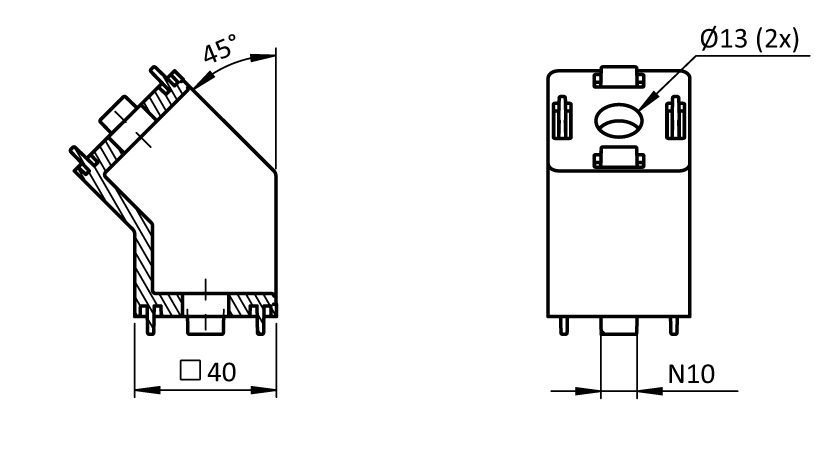

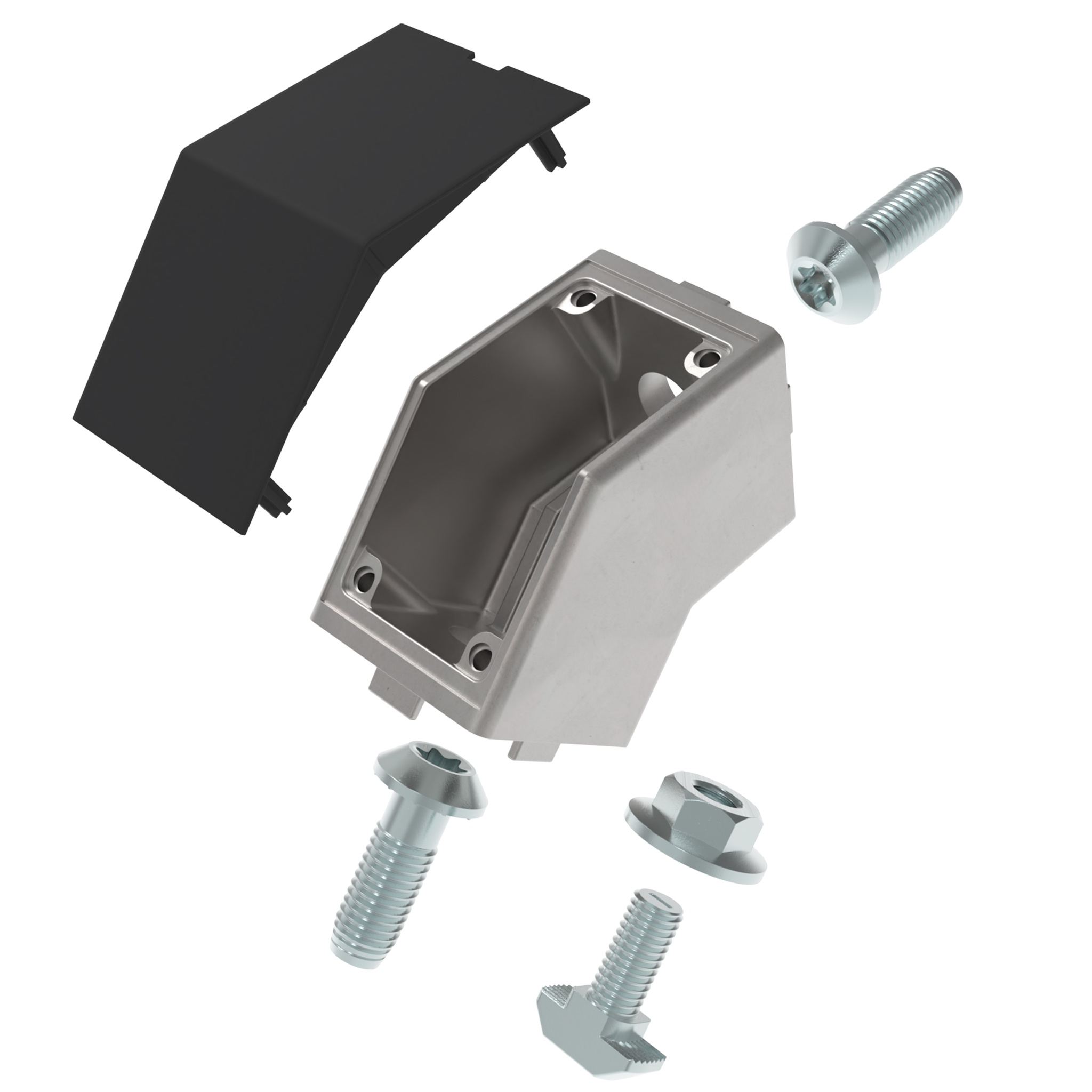

Set

1 Angle connector,

1 Cover cap,

2 Self-forming screws S12 x 30 - hexalobular socket T50,

1 Hammer head screw M8 x 20 - slot 10,

1 Flange nut M8

Surface

Angle connector: Plain / Powder coated

Assembly set: Zinc plated

From the FATH catalogue (EC-EN, p. 553)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
