FATH

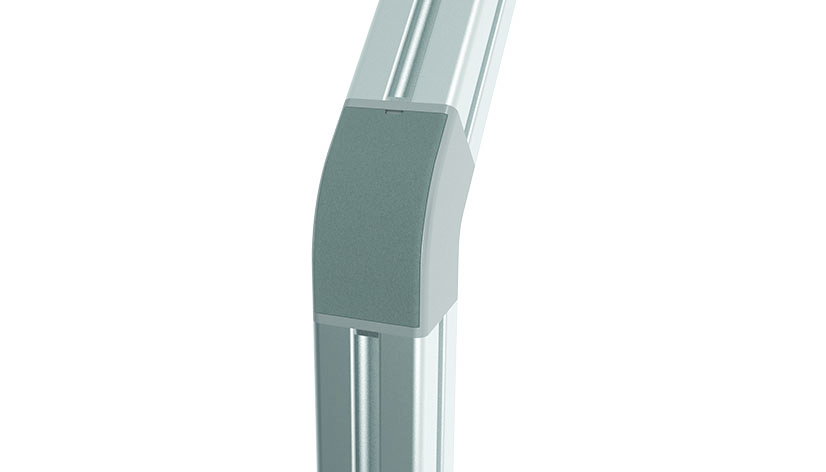

Angle Connector I 40, 45° (Set)
Part #: 093WS40545N08S01
To mount a profile as bracing at a 45° angle without miter cut
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 138 g
- ECLASS
- 23360290
- Category
- for Profile 40, Angle Connectors 45° · Connectors for Guiding Rails FIFO
Description 093WS40545N08S01
- Color
Angle connector: Alu color
Cover cap: Gray ≈ RAL 7042
- Description
To mount a profile as bracing at a 45° angle without miter cut
- Material
Angle connector: Aluminum die-cast
Centering pieces: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
- Set
1x angle connector,
4x centering pieces,
1x cover cap
- Surface
Angle connector: Powder coated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8, Slot 10 |
| Application Area | Industrial Work Stations, Shopfloor |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

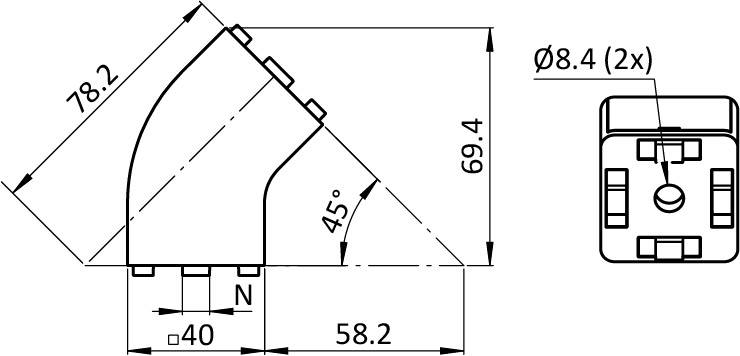

Drawing
From the FATH catalogue (EC-EN, p. 550)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
