Angle Locking Bracket 40 x 80 (Set)
Part #: 093WG403
To connect aluminum profiles at an adjustable angle, can be fixed in 2.5° steps by means of a knurled screw
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 275 g
- ECLASS
- 23360290
- Category
- Angle Locking Brackets
Description 093WG403
- Color
Body: Alu color
Knurled screw: Black
- Description
To connect aluminum profiles at an adjustable angle, can be fixed in 2.5° steps by means of a knurled screw
- Material
Body: Aluminum die-cast
Knurled screw: Plastic PA, glass fiber reinforced
Assembly material: Steel
- Set
1 angle locking bracket incl. knurled screw,
2 screws DIN 7984 - M8 x 18,
2 screws DIN EN ISO 7380 (34805) - M8 x 18,
2 shims DIN EN ISO 7089 (DIN 125) - 8.4,
4 T-slot nuts - slot 8 - M8
- Surface
Body: Powder coated
Assembly material: Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

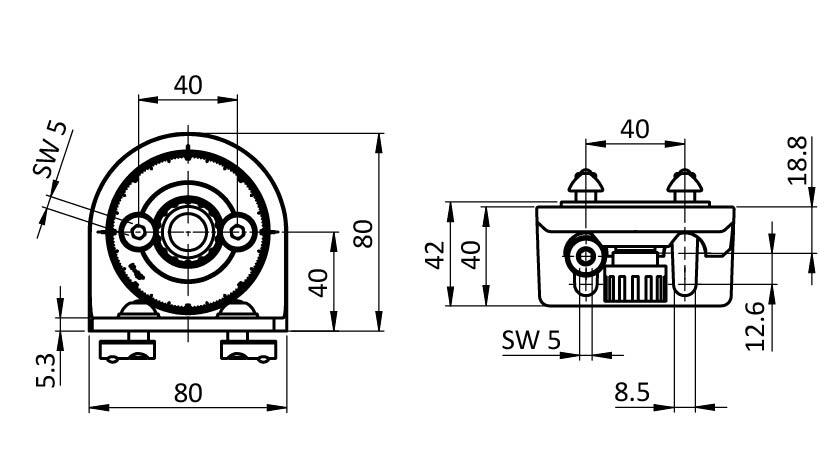

Drawing
From the FATH catalogue (EC-EN, p. 618)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
