FATH
Assembly Set for Heavy-duty Pivot Feet
Part #: 098XAKE · 2 variants
To assemble heavy-duty pivot feet
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 60.5 g
- ECLASS
- 23010791
- Category
- Accessories for Pivot Feet
Versions
Select a version — the description and files below follow your selection.

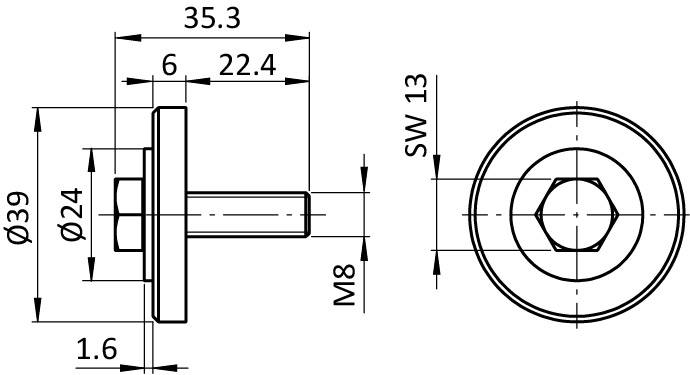

Description 098XAKE
- Assembly Set 1
1 screw DIN EN ISO 4017 (DIN 933) – M8 x 30 stainless steel, with polyamide thread locking dot,
1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 mm steel, zinc plated,
1 shaped washer – steel, zinc plated
- Assembly Set 2
1 screw DIN EN ISO 4017 (DIN 933) – M8 x 30 stainless steel, with polyamide thread locking dot,
1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 stainless steel,
1 shaped washer – stainless steel
- Description
To assemble heavy-duty pivot feet
- Material
Steel / stainless steel
- Surface
Zinc plated / plain
- Tip
Compatible threaded rod ST metric for pivot feet see 098AM12066M,
Compatible threaded rod SS metric for pivot feet see 098AM12066E,
Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M,
Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E
Properties
| Product Feature | Stainless |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 100 pieces |
| Model | Steel / stainless steel |
