FATH

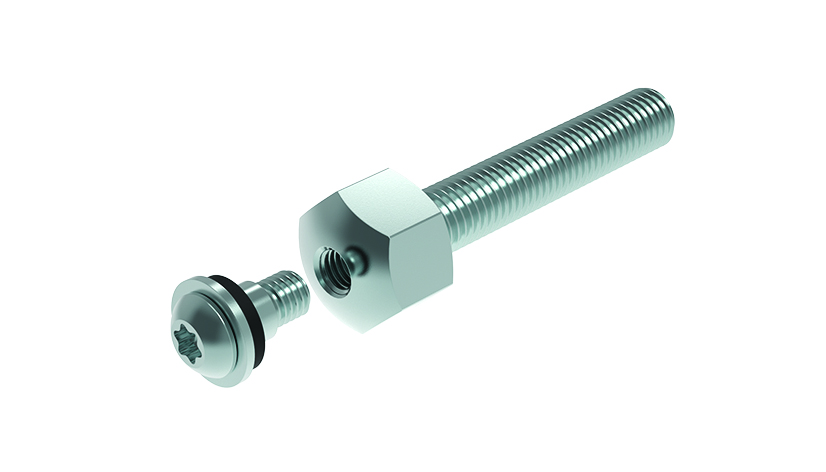

Assembly Set for Pivot Feet
Part #: 098XAES03 · 2 variants
To assemble pivot feet
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 14.4 g
- ECLASS
- 23010791
- Category
- Accessories for Pivot Feet
Versions
Select a version — the description and files below follow your selection.
Description 098XAES03
- Assembly Set 1

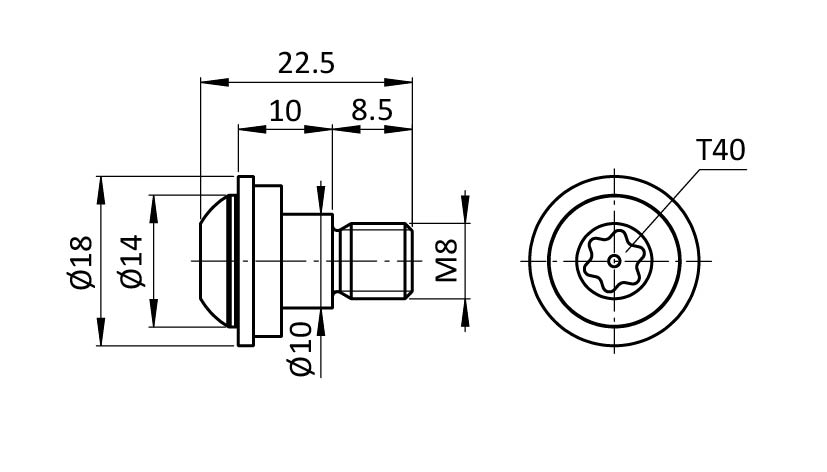

1 collar screw with shank - M8 x 18 - steel, zinc plated,
1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - steel, zinc plated,
1 bumper washer - rubber EPDM
- Assembly Set 2
1 collar screw with shank - M8 x 18 - stainless steel,
1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - stainless steel,
1 bumper washer - rubber EPDM
- Description
To assemble pivot feet
- Material
Steel / stainless steel, rubber EPM
- Surface
Zinc plated / plain
- Tip
Compatible threaded rod ST metric for pivot feet see 098AM12066M,
Compatible threaded rod SS metric for pivot feet see 098AM12066E,
Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M,
Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E
Properties
| Product Feature | Stainless |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 100 pieces |
| Model | Stainless steel |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
