FATH
Ball Catch 30
Part #: 093043 · 8 variants

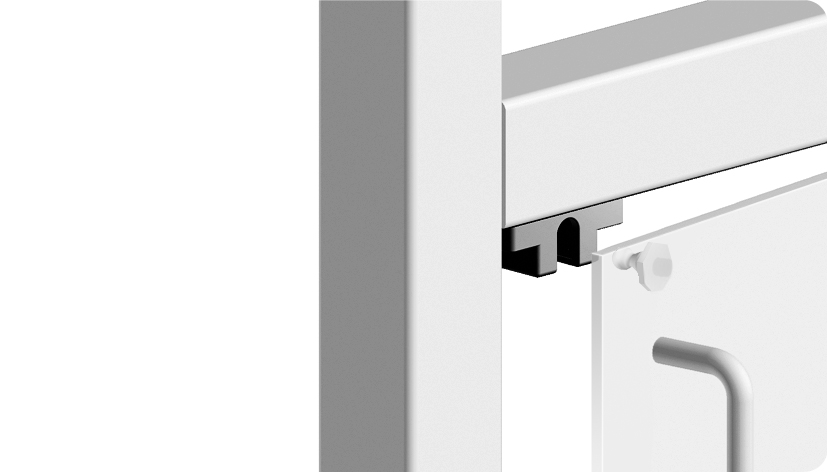

A quick locking device for doors, adaptable to the thickness of the panel units
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 45 g
- ECLASS
- 23250190
- Category
- Ball Catches · Ball Catches
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Color | Locking Force | Counter Screw | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 093043✓ Selected | Strong | Black | ~ 50 N | Zinc plated steel | |
| 093043S02 | Strong | Black | ~ 50 N | Stainless steel | |
| 093043S03 | Strong | Gray ≈ RAL 7042 | ~ 50 N | Zinc plated steel | |
| 093043S04 | Strong | Gray ≈ RAL 7042 | ~ 50 N | Stainless steel | |
| 093045 | Light | Black | ~ 40 N | Zinc plated steel | |
| 093045S03 | Light | Black | ~ 40 N | Stainless steel | |
| 093045S06 | Light | Gray ≈ RAL 7042 | ~ 40 N | Zinc plated steel | |
| 093045S07 | Light | Gray ≈ RAL 7042 | ~ 40 N | Stainless steel |
Description 093043
- Color
Black, gray
- Counter Screw
M8 x 12, zinc plated steel / stainless steel SS 304
- Description
A quick locking device for doors, adaptable to the thickness of the panel units
- Fastening
Using screws
- Material
Plastic PA, glass fiber reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors on request
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA |

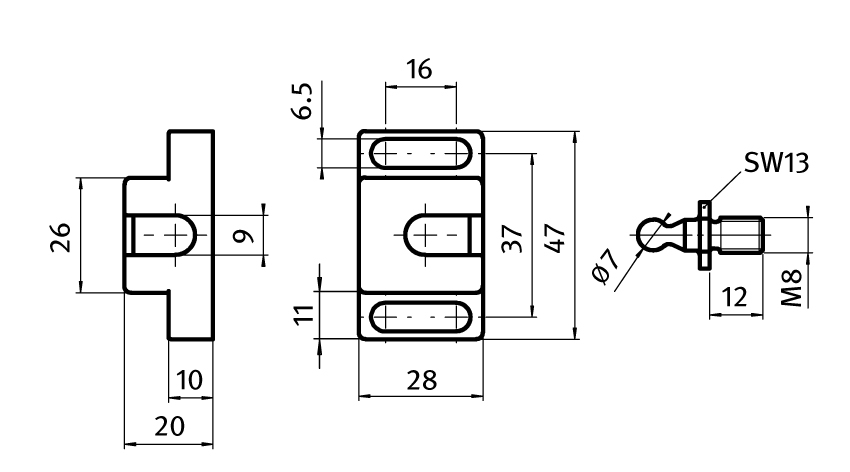

Drawing
From the FATH catalogue (EC-EN, p. 673)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
