FATH

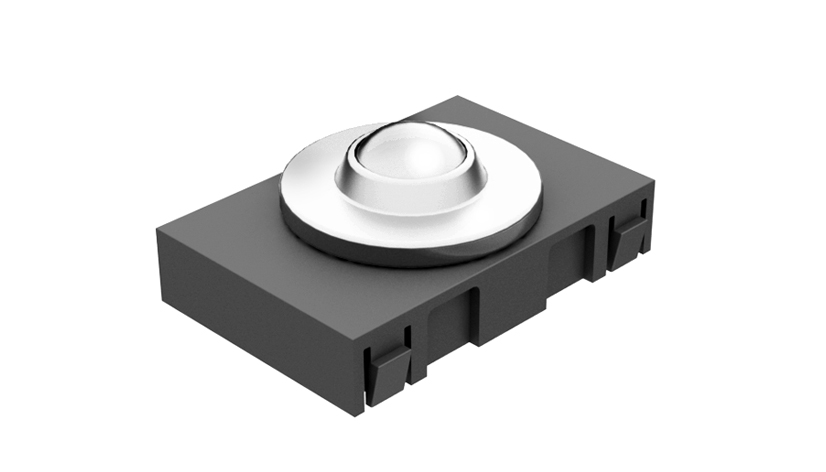

Ball Insert D24
Part #: 062AQ · 4 variants
Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housing
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 63 g
- ECLASS
- 36120491
- Category
- Components for Roller Tracks AL
Versions
Select a version — the description and files below follow your selection.
Description 062AQ
- Description
Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housing
- Material
Ball: Steel, stainless steel
Ball housing: Steel
Housing Attachment Clip: Steel
- Specials
Other materials, other surfaces on request
- Surface
Ball steel: Chrome plated / Ball stainless steel: Plain
Ball housing: Chrome plated
Housing Attachment Clip: Zinc plated
- Tip
Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 10 pieces |
| Model | For roller tracks AL |

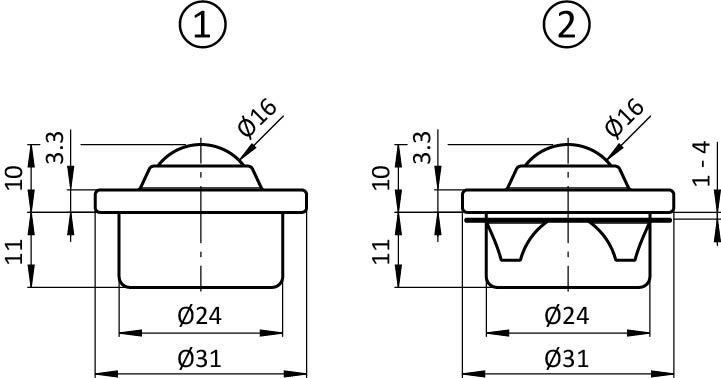

Drawing
From the FATH catalogue (EC-EN, p. 873)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Product family
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
