FATH

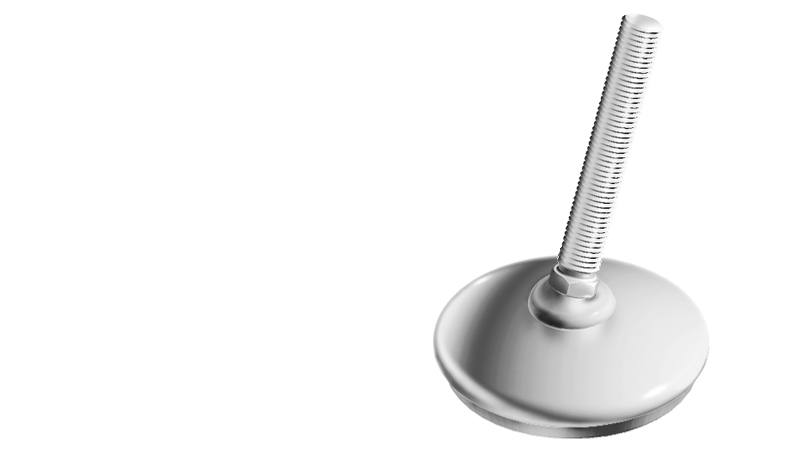

Base for Sealed Swivel Feet, Ball Joint 15
Part #: 098DE060EG · 3 variants
Adjustable Pivot foot to equalize uneven floors; With integrated anti-slip plate; Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degree
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 75 g
- ECLASS
- 23010704
- Category
- Bases, Swivel Feet Ball Joint 15
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | D (mm) | F1 (mm) | F2 (mm) | F3 (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 098DE060EG✓ Selected | 60 | 6860 | 58.5 | 35.0 | 38.0 | 39.0 | 10 pieces | |
| 098DE080EG | 80 | 6860 | 78.5 | 35.0 | 38.0 | 39.0 | 1 piece | |
| 098DE100EG | 100 | 6860 | 98.5 | 35.0 | 38.0 | 39.0 | 1 piece |
Description 098DE060EG
- Color
Anti-slip Plate: light gray ≈ RAL 7035
- Description
Adjustable Pivot foot to equalize uneven floors;
With integrated anti-slip plate;
Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degree
- Material
Base: Stainless steel SS304
Anti-slip Plate: TPE ≈ 75 Shore A, water and oil resistant (up to 60°C), with antibacterial and antimicrobial protection
- Specials
As factory assembled leveling foot on request
- Tip
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | Fractional, Stainless |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Stainless steel |

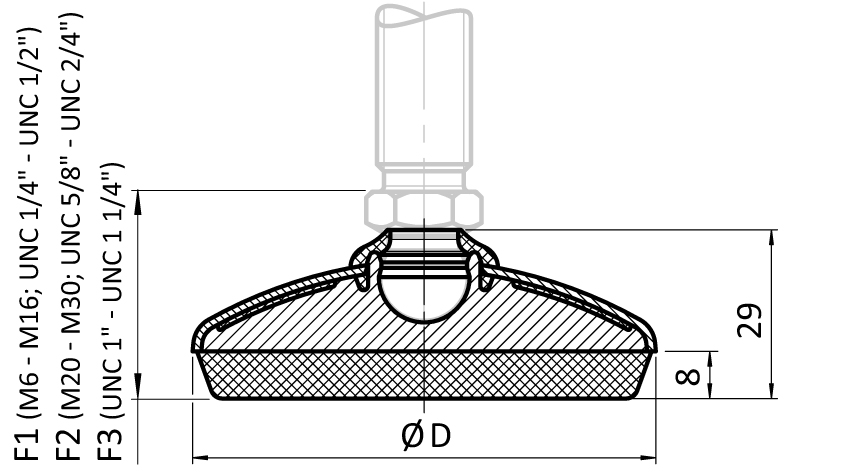

Drawing
From the FATH catalogue (EC-EN, p. 28)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
