Base PA BDH for Pivot Feet

Part #: 098A080KB · 8 variants

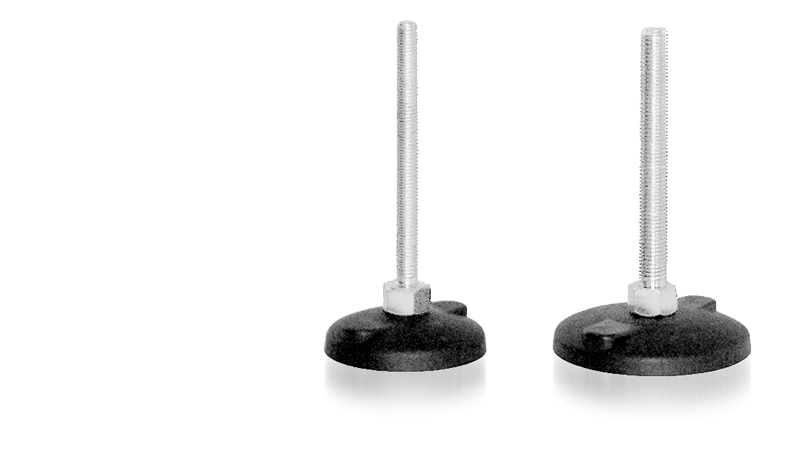

A leveling foot which can be fixed to the floor

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

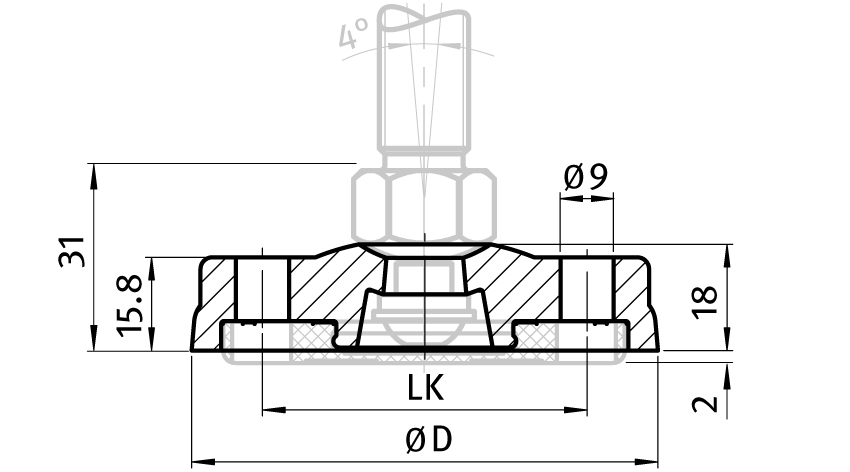

Part #	Base	Fmax (N)	D (mm)	Version	LK (mm)
098A080KB✓ Selected	80	11770	79	without anti-slip plate	55
098A080KBG	80	11770	79	with anti-slip plate	55
098A080KBZ	*80	11770	79	without anti-slip plate	55
098A080KBZG	*80	11770	79	with anti-slip plate	55
098A100KB	100	11770	99	without anti-slip plate	74
098A100KBG	100	11770	99	with anti-slip plate	74
098A100KBZ	*100	11770	99	without anti-slip plate	74
098A100KBZG	*100	11770	99	with anti-slip plate	74

Color

Black

Description

A leveling foot which can be fixed to the floor

Material

Plastic PA, glass ball reinforced

Specials

ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

as factory assembled leveling foot on request

Tip

Compatible Threaded Rod see 098AM12066M,

Compatible Nut see 4DIN439BM5M et sq.,

Compatible Anti-Slip Plate 098AG050;

*Bolt-down holes closed

Profile Type	Profile Type B, Profile Type I
Product Feature	Fractional
Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
Model	Plastic PA, with bolt-down holes

From the FATH catalogue (EC-EN, p. 52)
