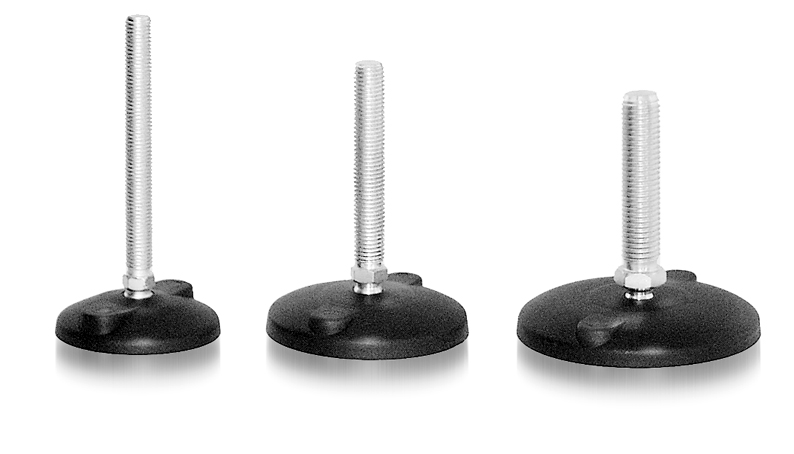

Base PA BDH for Swivel Feet, Ball Joint 15, Black
Part #: 098D080KB · 12 variants
A swiveling leveling foot which can be fixed to the floor
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 46 g
- ECLASS
- 23010704
- Category
- Bases, Swivel Feet Ball Joint 15
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | D (mm) | Version | LK (mm) | F1 (mm) | F2 (mm) | F3 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 098D080KB✓ Selected | 80 | 8820 | 79 | without anti-slip plate | 55 | 29.5 | 32.5 | 33.5 | |
| 098D080KBG | 80 | 8820 | 79 | with anti-slip plate | 55 | 29.5 | 32.5 | 33.5 | |
| 098D080KBZ | *80 | 8820 | 79 | without anti-slip plate | 55 | 29.5 | 32.5 | 33.5 | |
| 098D080KBZG | *80 | 8820 | 79 | with anti-slip plate | 55 | 29.5 | 32.5 | 33.5 | |
| 098D100KB | 100 | 8820 | 99 | without anti-slip plate | 74 | 29.5 | 32.5 | 33.5 | |
| 098D100KBG | 100 | 8820 | 99 | with anti-slip plate | 74 | 29.5 | 32.5 | 33.5 | |
| 098D100KBZ | *100 | 8820 | 99 | without anti-slip plate | 74 | 29.5 | 32.5 | 33.5 | |
| 098D100KBZG | *100 | 8820 | 99 | with anti-slip plate | 74 | 29.5 | 32.5 | 33.5 | |
| 098D120KB | 120 | 8820 | 119 | without anti-slip plate | 94 | 29.5 | 32.5 | 33.5 | |
| 098D120KBG | 120 | 8820 | 119 | with anti-slip plate | 94 | 29.5 | 32.5 | 33.5 | |
| 098D120KBZ | *120 | 8820 | 119 | without anti-slip plate | 94 | 29.5 | 32.5 | 33.5 | |
| 098D120KBZG | *120 | 8820 | 119 | with anti-slip plate | 94 | 29.5 | 32.5 | 33.5 |
Description 098D080KB
- Color
Black
- Description
A swiveling leveling foot which can be fixed to the floor
- Material
Plastic PA, glass ball reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request
- Tip

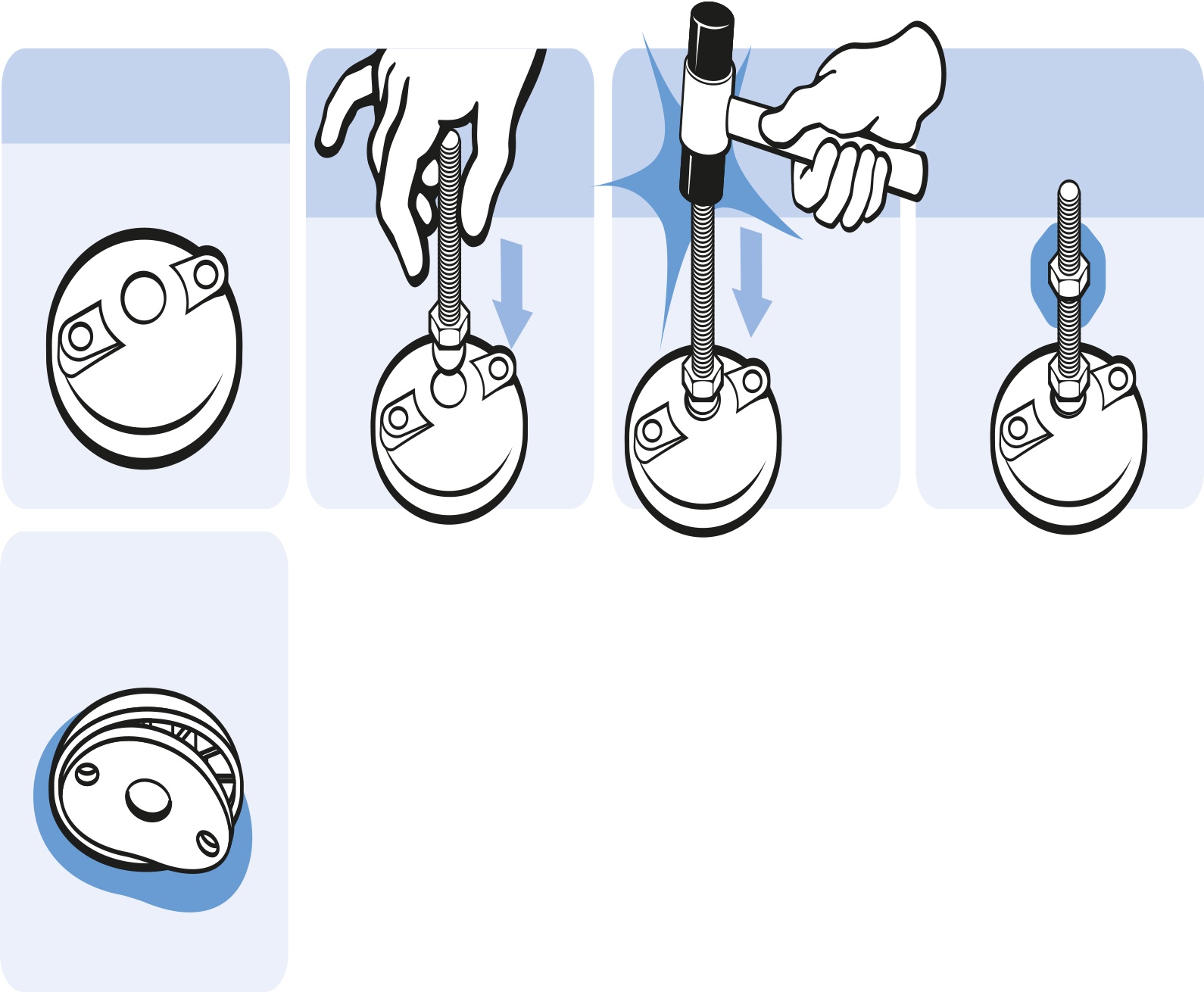

Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-slip Plate see 098DG030 et sq.;
*Bolt-down holes closed
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | Fractional |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA, with bolt-down holes |

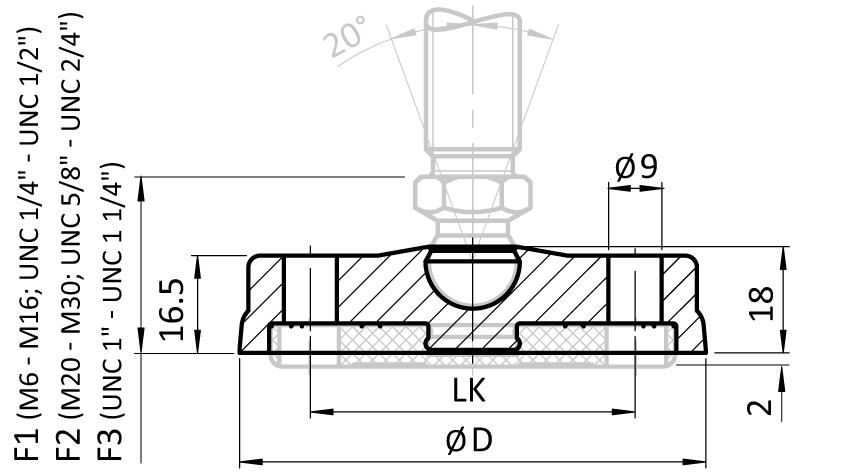

Drawing
From the FATH catalogue (EC-EN, p. 22)
