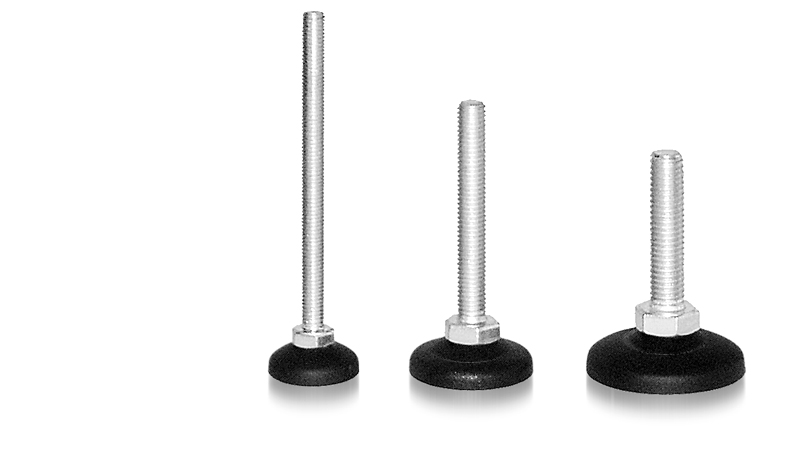

Base PA for ECO Feet
Part #: 098E030K · 6 variants
Economical leveling foot for strong positioning on slightly uneven floors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 5 g
- ECLASS
- 23010704
- Category
- Bases, ECO Feet
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | D (mm) | Version | H (mm) | F1 (mm) | F2 (mm) | F3 (mm) | h (mm) | F4 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 098E030K✓ Selected | 30 | 14700 | 29 | without anti-slip plate | 11.5 | 16.0 | 16.5 | 17.5 | 2.0 | 20.0 | |
| 098E030KG | 30 | 14700 | 29 | with anti-slip plate | 11.5 | 16.0 | 16.5 | 17.5 | 2.0 | 20.0 | |
| 098E040K | 40 | 14700 | 39 | without anti-slip plate | 12.0 | 16.5 | 17.0 | 18.0 | 2.5 | 20.5 | |
| 098E040KG | 40 | 14700 | 39 | with anti-slip plate | 12.0 | 16.5 | 17.0 | 18.0 | 2.5 | 20.5 | |
| 098E050K | 50 | 14700 | 50 | without anti-slip plate | 15.3 | 19.8 | 20.3 | 21.3 | 3.0 | 23.8 | |
| 098E050KG | 50 | 14700 | 50 | with anti-slip plate | 15.3 | 19.8 | 20.3 | 21.3 | 3.0 | 23.8 |
Description 098E030K
- Color
Black
- Description
Economical leveling foot for strong positioning on slightly uneven floors
- Material
Plastic PA, glass ball reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
- Tip
Compatible Threaded Rod see 098EM08025M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip-Plate see 098EG030;
(ECO feet are provided factory assembled)
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 100 pieces |
| Model | Plastic PA |

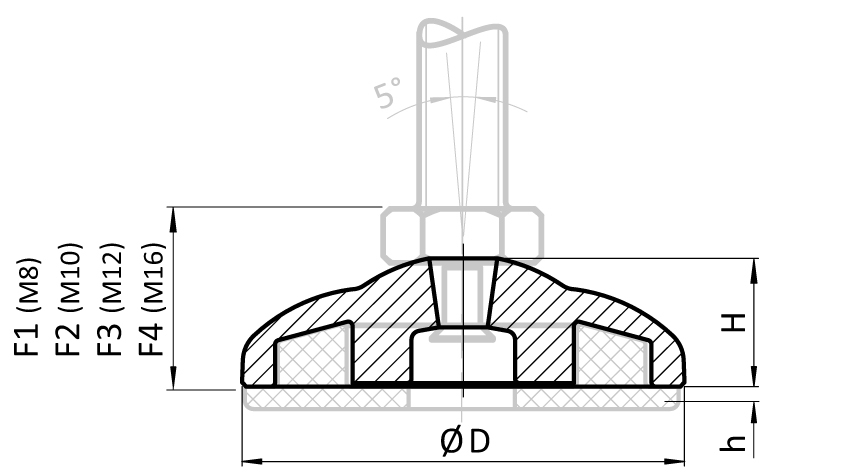

Drawing
From the FATH catalogue (EC-EN, p. 68)
