Base PA for Heavy-duty Fixed Feet
Part #: 098K125KBZ · 3 variants
Leveling foot for a strong positioning of heavy machinery on the floor
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 250 g
- ECLASS
- 23010704
- Category
- Bases, Heavy-duty Feet
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | D (mm) | F (mm) | Version | LK (mm) | H (mm) | d (mm) | h (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 098K125KBZ✓ Selected | 125 | 17650 | 125 | 57.5 | without anti-slip plate | 96 | 44 | 14 | 24 | 10 pieces | |
| 098K125KBZG | 125 | 17650 | 125 | 57.5 | with anti-slip plate | 96 | 44 | 14 | 24 | 1 piece | |
| 098K175KBZ | 175 | 24500 | 175 | 58.5 | without anti-slip plate | 135 | 45 | 17 | 22 | 1 piece |
Description 098K125KBZ
- Color
Black
- Description
Leveling foot for a strong positioning of heavy machinery on the floor
- Material
Plastic PA, glass ball reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request
- Tip
Compatible Threaded Rod see 098KM16100M,
Compatible Nut see 4DIN439BM5 et sq.
Compatible Anti-Slip Plate see 098AG125B
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA, with bolt-down holes |

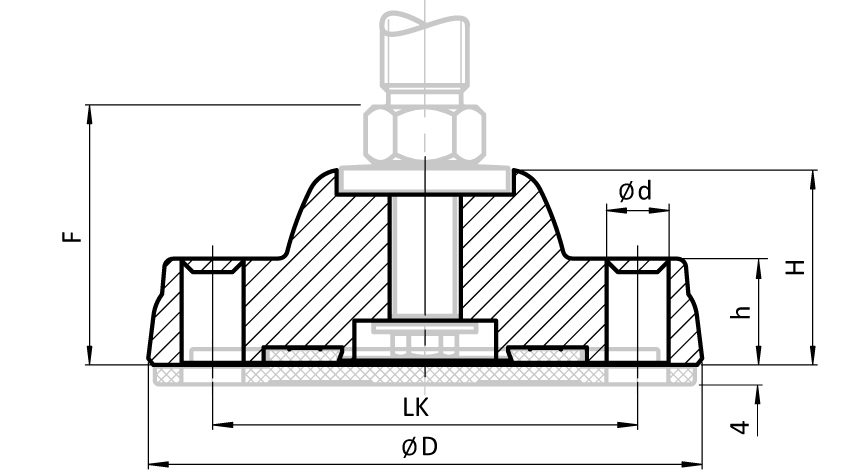

Drawing
From the FATH catalogue (EC-EN, p. 74)
