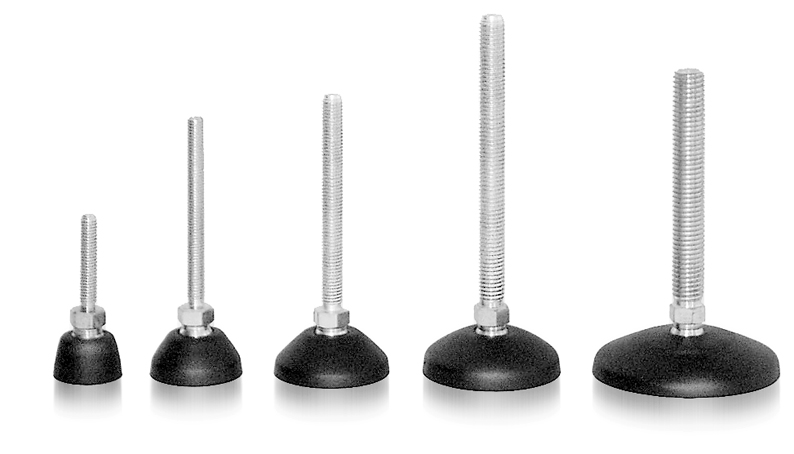

Base PA for Swivel Feet, Ball Joint 15, Black
Part #: 098D030K · 14 variants
A swiveling leveling foot for strong positioning on uneven floors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 8 g
- ECLASS
- 23010704
- Category
- Bases, Swivel Feet Ball Joint 15
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | D (mm) | Version | F1 (mm) | F2 (mm) | F3 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 098D030K✓ Selected | 30 | 4900 | 29 | without anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D030KG | 30 | 4900 | 29 | with anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D040K | 40 | 8820 | 39 | without anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D040KG | 40 | 8820 | 39 | with anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D045K | 45 | 8820 | 44 | without anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D045KG | 45 | 8820 | 44 | with anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D050K | 50 | 8820 | 49 | without anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D050KG | 50 | 8820 | 49 | with anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D060K | 60 | 8820 | 59 | without anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D060KG | 60 | 8820 | 59 | with anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D080K | 80 | 8820 | 79 | without anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D080KG | 80 | 8820 | 79 | with anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D100K | 100 | 8820 | 99 | without anti-slip plate | 29.5 | 32.5 | 33.5 | |
| 098D100KG | 100 | 8820 | 99 | with anti-slip plate | 29.5 | 32.5 | 33.5 |
Description 098D030K
- Color
Black
- Description
A swiveling leveling foot for strong positioning on uneven floors
- Material
Plastic PA, glass ball reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request
- Tip
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | Fractional |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA, without bolt-down holes |

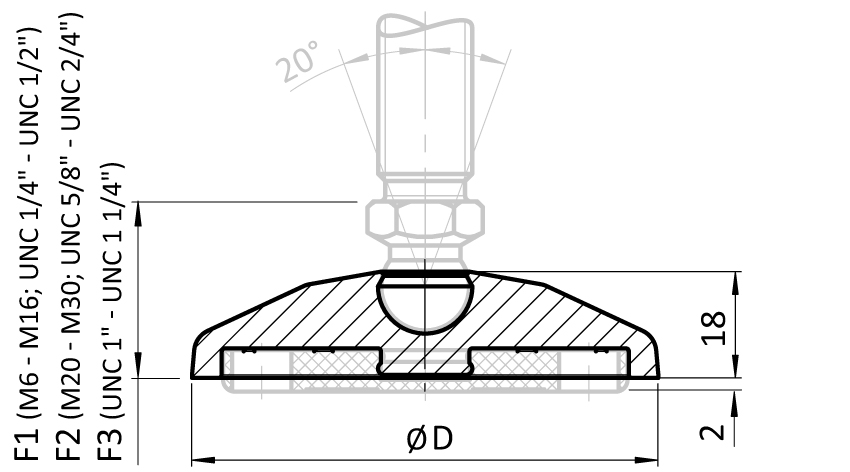

Drawing
From the FATH catalogue (EC-EN, p. 20)
