FATH

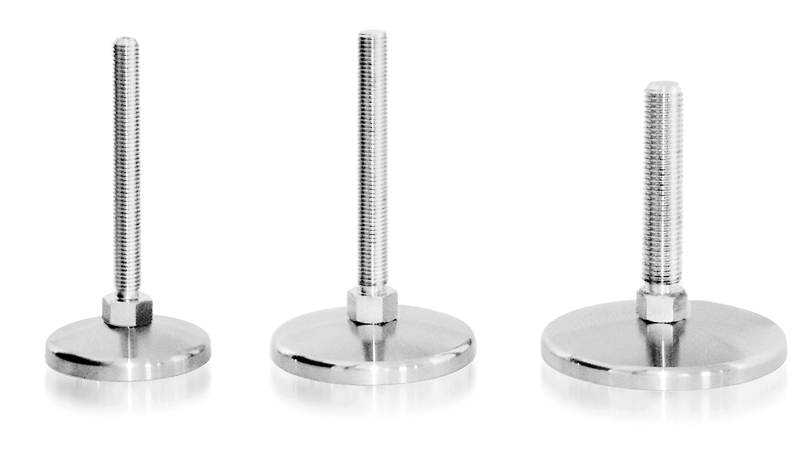

Base SS for Pivot Feet
Part #: 098A060E · 8 variants
A leveling foot for strong positioning on slightly uneven floors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 216 g
- ECLASS
- 23010704
- Category
- Bases, Pivot Feet
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | D (mm) | Version | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 098A060E✓ Selected | 60 | 44100 | 59 | without anti-slip plate | 1 piece | |
| 098A060EG | 60 | 44100 | 59 | with anti-slip plate | 10 pieces | |
| 098A080E | 80 | 44100 | 79 | without anti-slip plate | 1 piece | |
| 098A080EG | 80 | 44100 | 79 | with anti-slip plate | 1 piece | |
| 098A100E | 100 | 44100 | 99 | without anti-slip plate | 1 piece | |
| 098A100EG | 100 | 44100 | 99 | with anti-slip plate | 1 piece | |
| 098A120E | 120 | 44100 | 119 | without anti-slip plate | 1 piece | |
| 098A120EG | 120 | 44100 | 119 | with anti-slip plate | 1 piece |
Description 098A060E
- Description
A leveling foot for strong positioning on slightly uneven floors
- Material
Stainless steel SS303
- Specials
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request
- Surface
Plain
- Tip
Compatible Threaded Rod see 098AM12066E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate 098AG050
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | ESD, Fractional, Stainless |
| Profile Form | T-slot Profiles |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Stainless steel, without bolt-down holes |

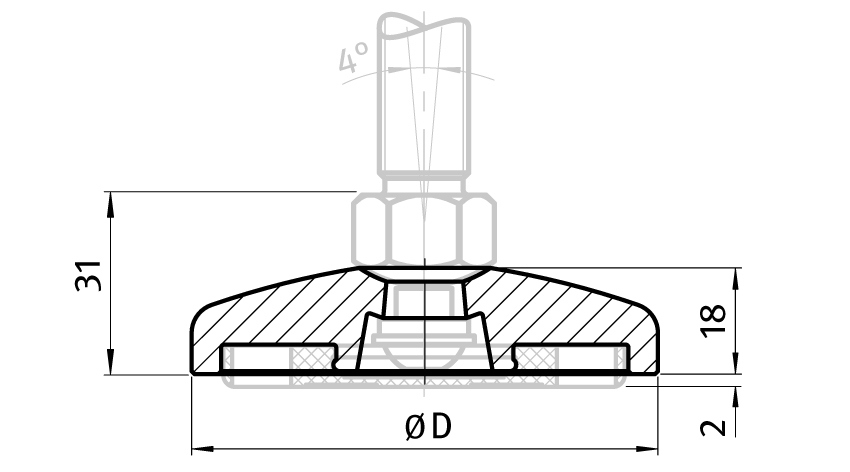

Drawing
From the FATH catalogue (EC-EN, p. 55)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
