FATH
Base SS for Swivel Feet, Ball Joint 15
Part #: 098D030E · 16 variants

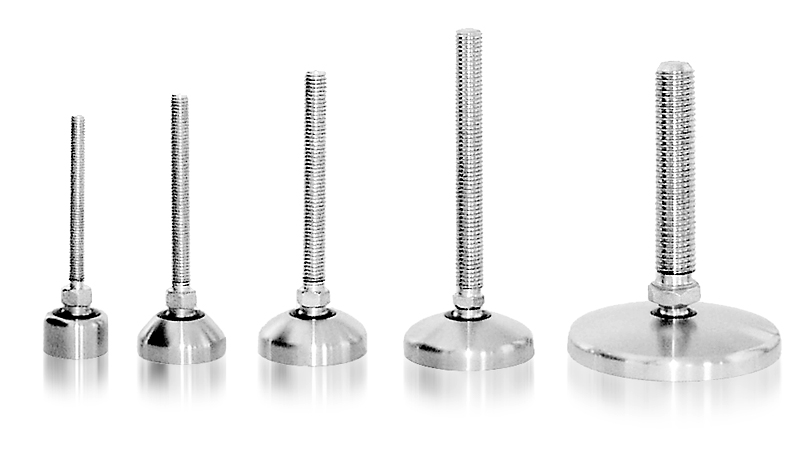

A swiveling leveling foot for strong positioning on uneven floors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 62 g
- ECLASS
- 23010704
- Category
- Bases, Swivel Feet Ball Joint 15
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | D (mm) | Version | F1 (mm) | F2 (mm) | F3 (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 098D030E✓ Selected | 30 | 19600 | 29 | without anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D030EG | 30 | 19600 | 29 | with anti-slip plate | 29.5 | 32.5 | 33.5 | 10 pieces | |
| 098D040E | 40 | 29400 | 39 | without anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D040EG | 40 | 29400 | 39 | with anti-slip plate | 29.5 | 32.5 | 33.5 | 10 pieces | |
| 098D045E | 45 | 29400 | 44 | without anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D045EG | 45 | 29400 | 44 | with anti-slip plate | 29.5 | 32.5 | 33.5 | 10 pieces | |
| 098D050E | 50 | 34300 | 49 | without anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D050EG | 50 | 34300 | 49 | with anti-slip plate | 29.5 | 32.5 | 33.5 | 10 pieces | |
| 098D060E | 60 | 34300 | 59 | without anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D060EG | 60 | 34300 | 59 | with anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D080E | 80 | 34300 | 79 | without anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D080EG | 80 | 34300 | 79 | with anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D100E | 100 | 39200 | 99 | without anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D100EG | 100 | 39200 | 99 | with anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D120E | 120 | 39200 | 119 | without anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece | |
| 098D120EG | 120 | 39200 | 119 | with anti-slip plate | 29.5 | 32.5 | 33.5 | 1 piece |

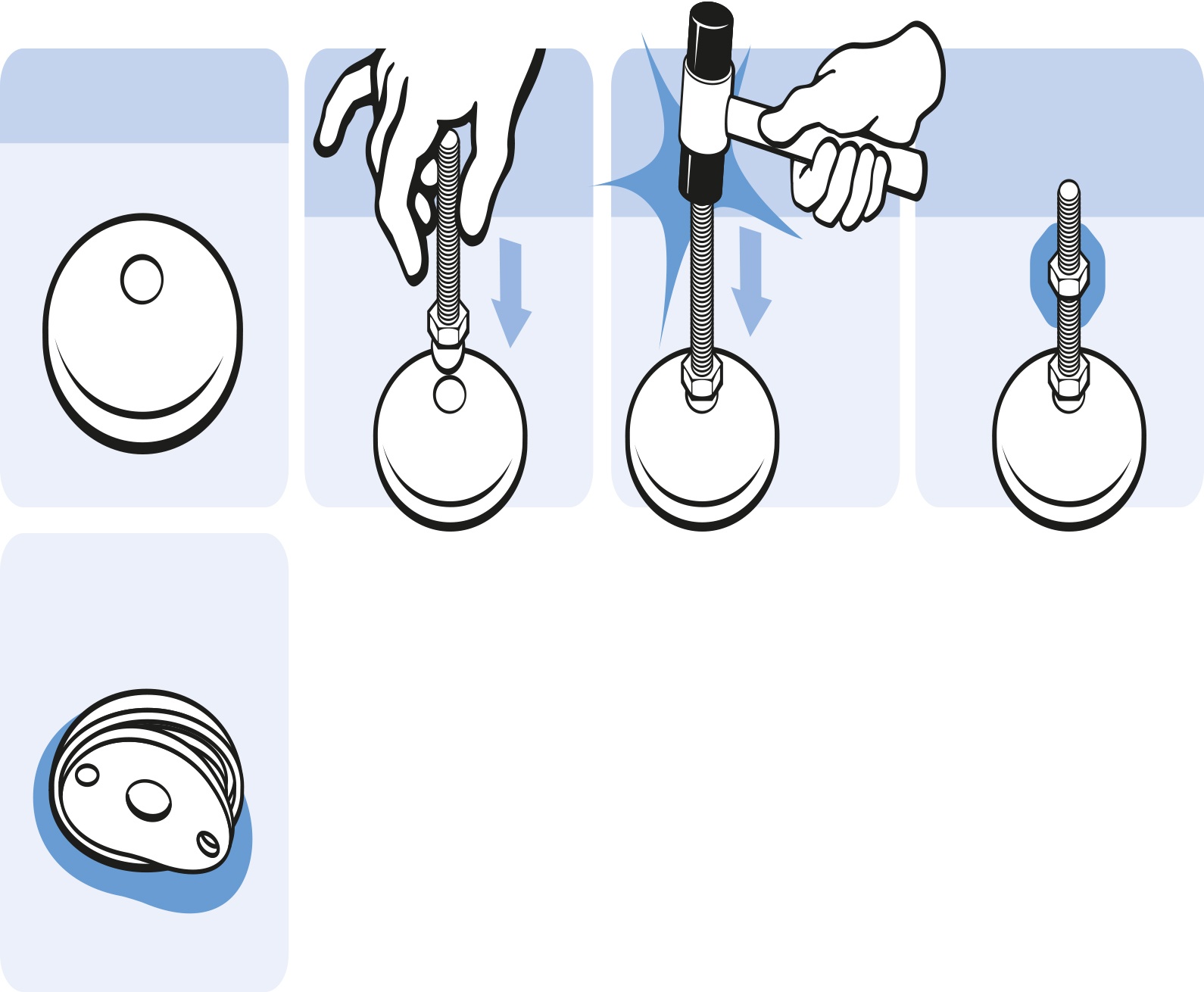

Description 098D030E
- Description
A swiveling leveling foot for strong positioning on uneven floors
- Material
Stainless steel SS303
- Specials
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request
- Surface
Plain
- Tip
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | ESD, Fractional, Stainless |
| Profile Form | T-slot Profiles |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Stainless steel, without bolt-down holes |

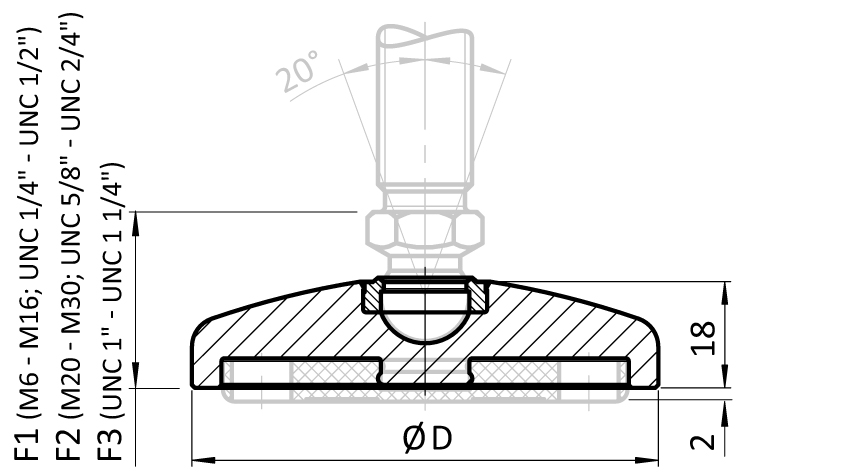

Drawing
From the FATH catalogue (EC-EN, p. 26)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
