FATH
Bearing block for support roller I D32 (Set)
Part #: 062CIAK

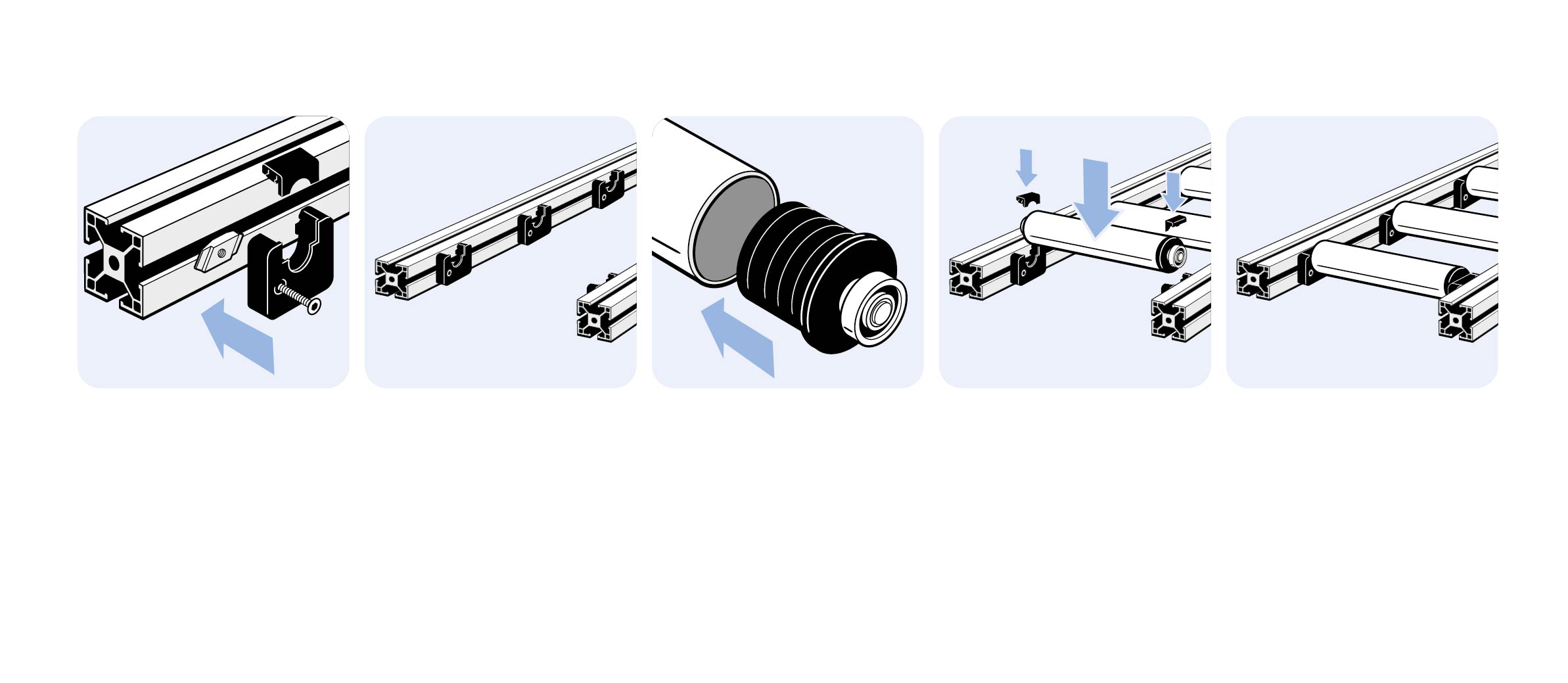

To engage the bearings of a support roller I D32, mounting sideways in the slot 8 of the aluminum profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 30 g
- ECLASS
- 36123692
- Category
- Holders for Support Roller
Description 062CIAK
- Color
Housing: Black
- Description
To engage the bearings of a support roller I D32, mounting sideways in the slot 8 of the aluminum profile
- Material
Housing: Plastic PA, glass fiber reinforced
Screw: Steel
Rhombus nut: Zinc die-cast
- Set
2 Bearing blocks
- Surface
Screw: Zinc plated
Rhombus nut: Zinc plated
- Tip
Compatible Bearing for Support Roller I D32 see 062CIL11K
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Application Area | Intralogistics |
| Pack Quantity | 1 piece |
| Model | Plastic PA |

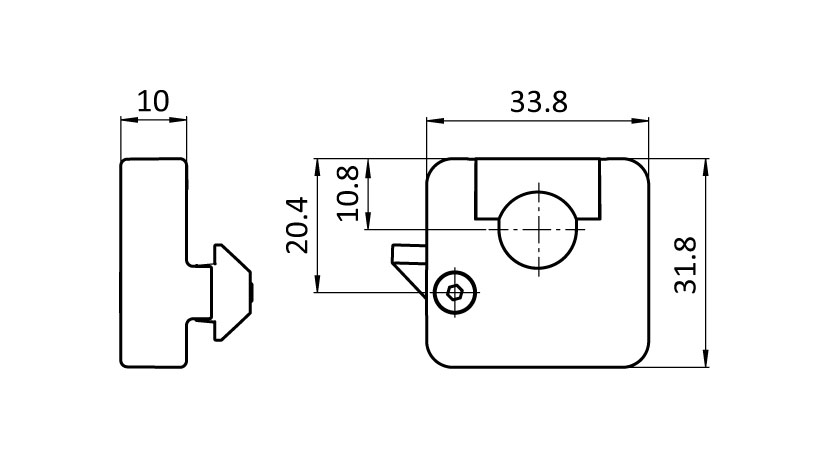

Drawing
From the FATH catalogue (EC-EN, p. 885)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
