FATH
Bearing for Support Roller I D32
Part #: 062CIL11K

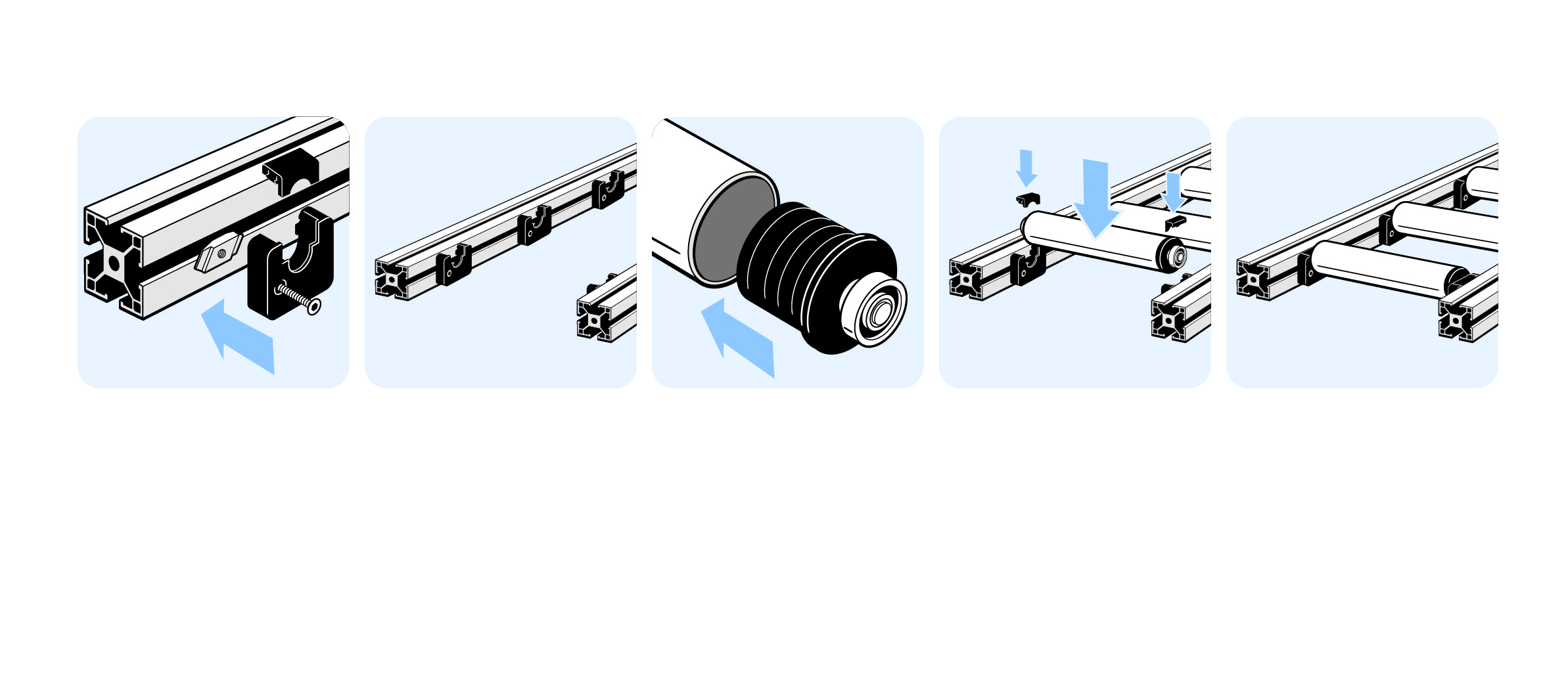

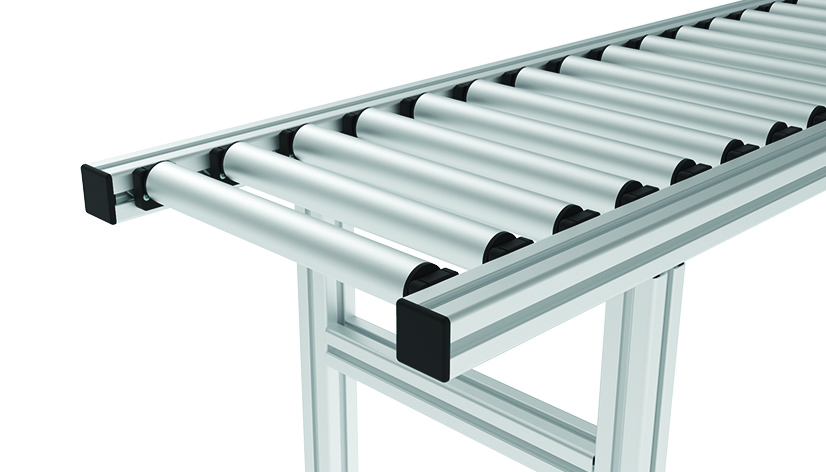

To build a support roller from one piece of tube D32 made of aluminum or plastic; The lateral ball bearings are inserted in two bearing blocks on the aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 20.4 g
- ECLASS
- 23059090
- Category
- Bearings for Support Roller
Description 062CIL11K
- Color
Housing: Black
- Description
To build a support roller from one piece of tube D32 made of aluminum or plastic;
The lateral ball bearings are inserted in two bearing blocks on the aluminum profiles
- Material
Housing: Plastic PA, glass fiber reinforced
Ball bearings: Steel
- Set
2 Bearings for support roller I D32
- Tip
Compatible bearing block see 062CIAK
Properties
| Profile Type | Profile Type I |
|---|---|
| Application Area | Intralogistics |
| Pack Quantity | 1 piece |
| Model | With ball bearings |

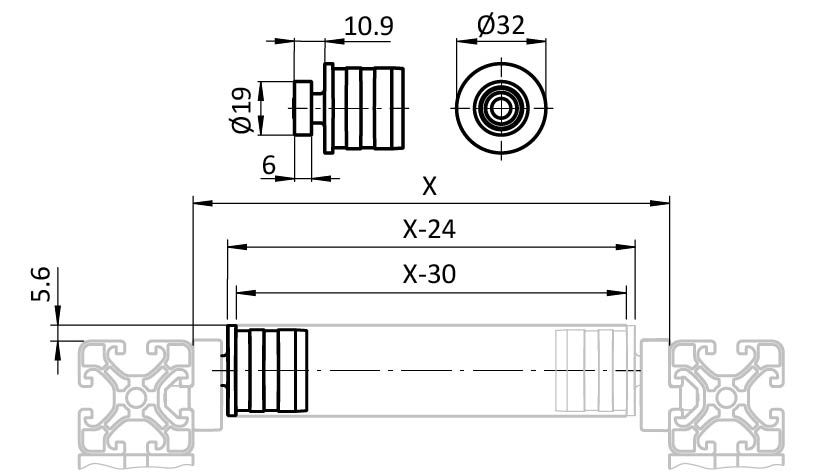

Drawing
From the FATH catalogue (EC-EN, p. 886)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
