FATH

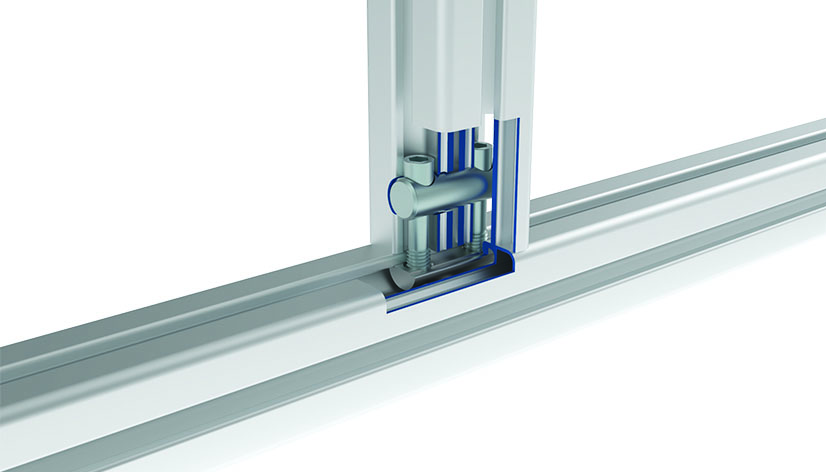

Bolt Connector I, Slot 8
Part #: 099C403 · 2 variants

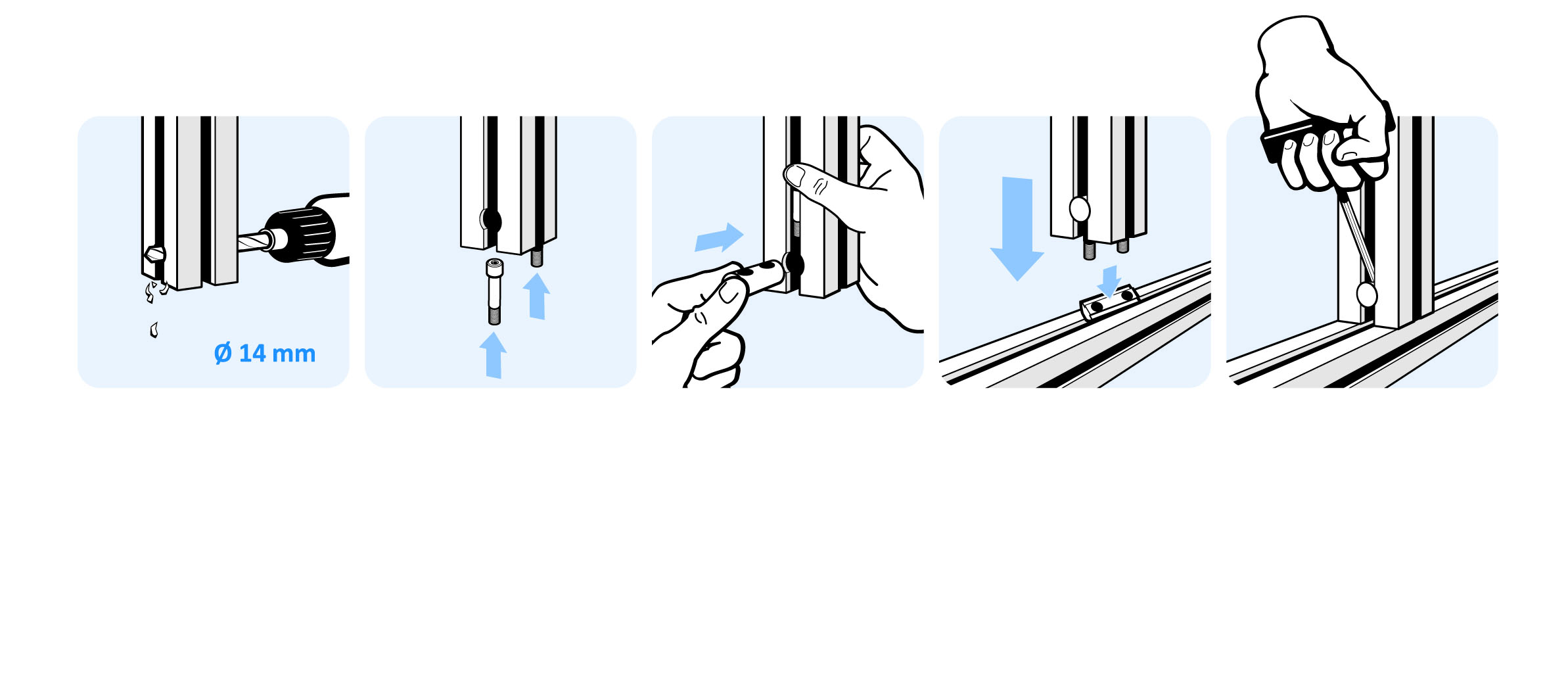

To connect two aluminum profiles at right angles; a hole with Ø 14 mmmust be drilled lateral through one of the profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 79.5 g
- ECLASS
- 23360290
- Category
- Profile 40, Bolt Connectors
Versions
Select a version — the description and files below follow your selection.
Description 099C403
- Description
To connect two aluminum profiles at right angles; a hole with Ø 14 mmmust be drilled lateral through one of the profiles
- Material
Steel
- Surface
Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Slot 8 |

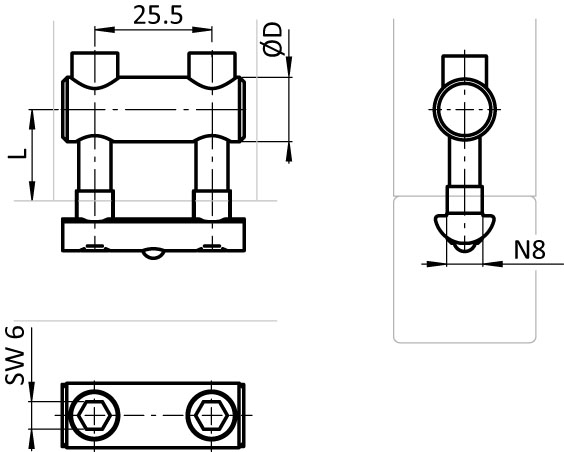

Drawing
From the FATH catalogue (EC-EN, p. 481)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
