Bolt Connector, Slot 10
Part #: 099C1001 · 7 variants

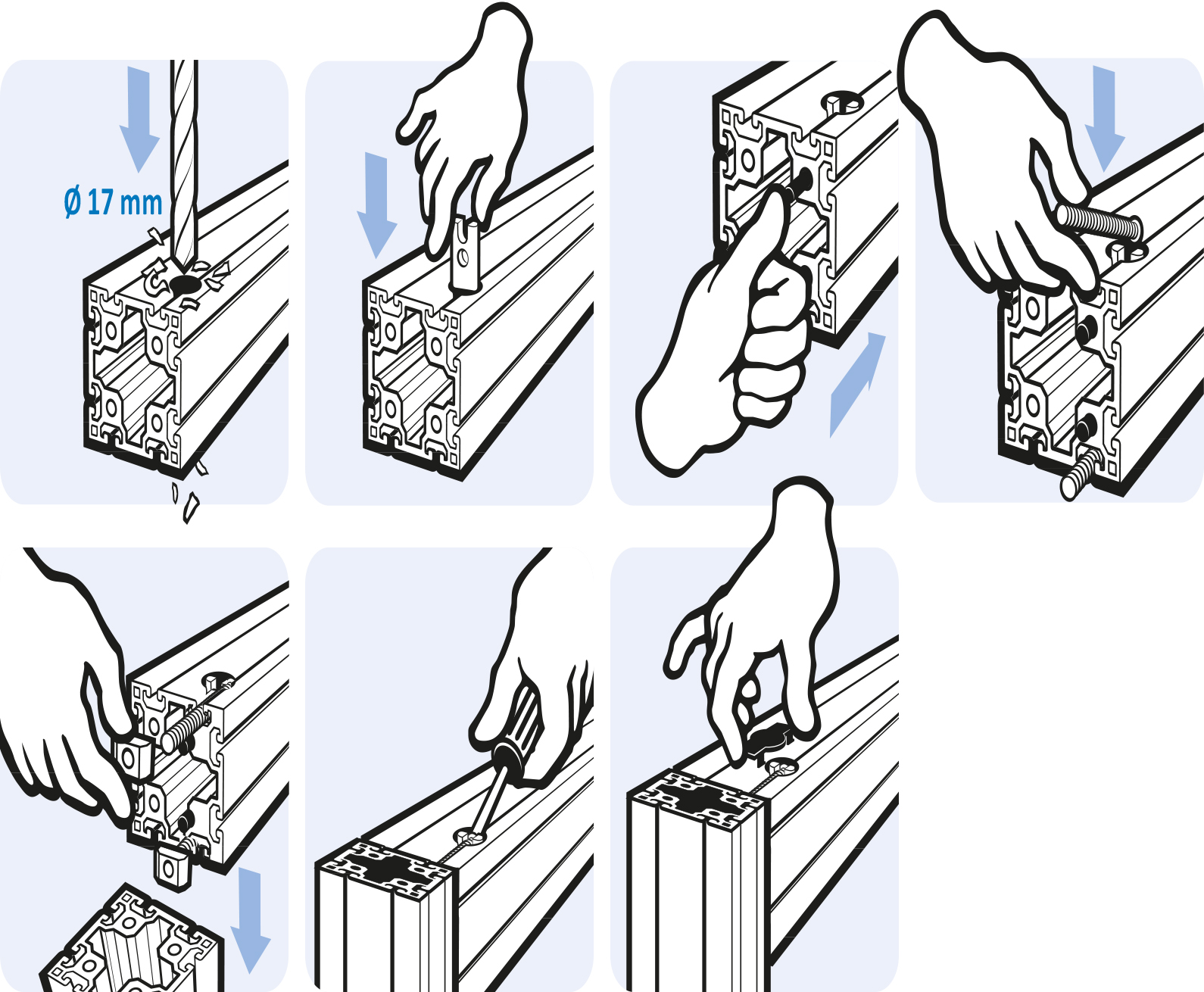

To connect two aluminum profiles at right angles; a 17 mm through-hole must be drilled through the side of one profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 134 g
- ECLASS
- 23360290
- Category
- Profile 40 - 100, Bolt Connectors
Versions
Select a version — the description and files below follow your selection.
Description 099C1001
- Description
To connect two aluminum profiles at right angles; a 17 mm through-hole must be drilled through the side of one profile
- Material
Base element: Steel
Screws: Steel
Fixing bolts: Plastic PA, glass fiber reinforced
Screw cover: Plastic PA, glass fiber reinforced
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Slot 10 |

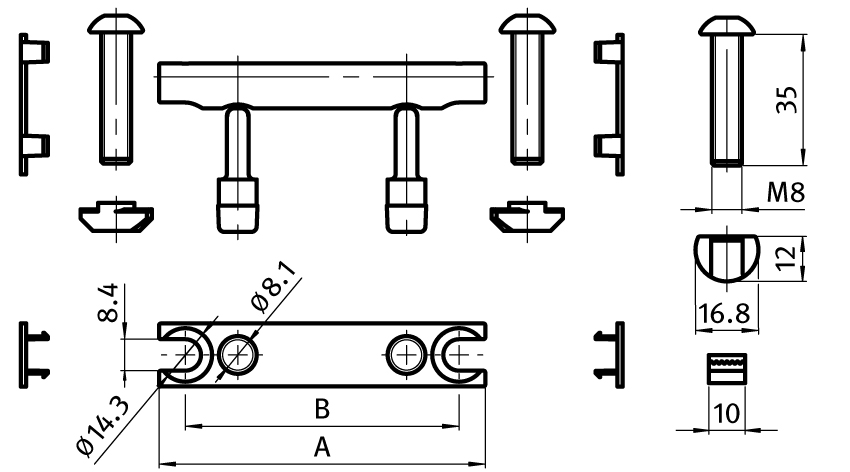

Drawing
From the FATH catalogue (EC-EN, p. 483)
