FATH
Bolt Connector, Slot 8 / D=8.2
Part #: 099C301

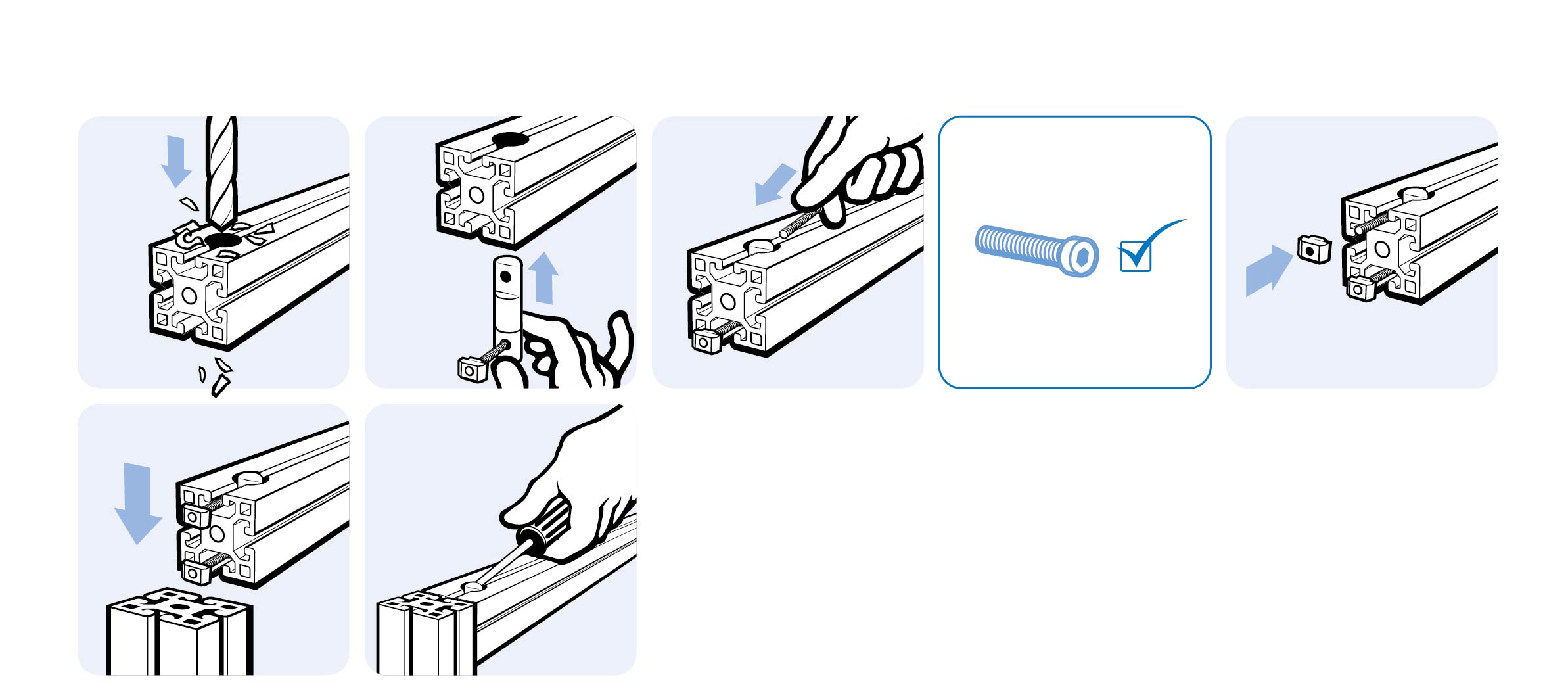

To connect two aluminum profiles at right angles; a 8.2 mm through-hole must be drilled through the side of one profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 21.5 g
- ECLASS
- 23360290
- Category
- Profile 30, Bolt Connectors
Description 099C301
- Color
Fixing bolts: Black
Screw cover: Black
- Description
To connect two aluminum profiles at right angles; a 8.2 mm through-hole must be drilled through the side of one profile
- Material
Bolts and screws: Steel
Fixing bolts: Plastic PA, glass fiber reinforced
Screw cover: Plastic PA, glass fiber reinforced
- Surface
Bolts and screws: Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Slot 8 |

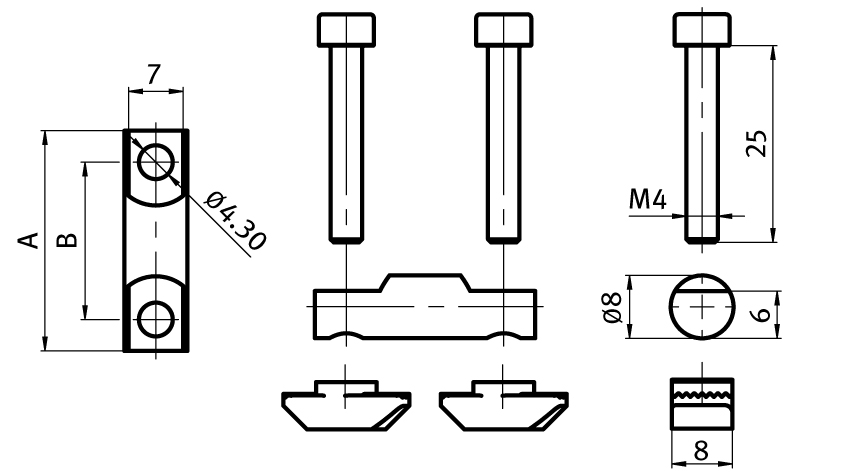

Drawing
From the FATH catalogue (EC-EN, p. 479)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
