Bridge Handle AL

Part #: 0850003 · 3 variants

To mount on doors, flaps and aluminum profiles

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

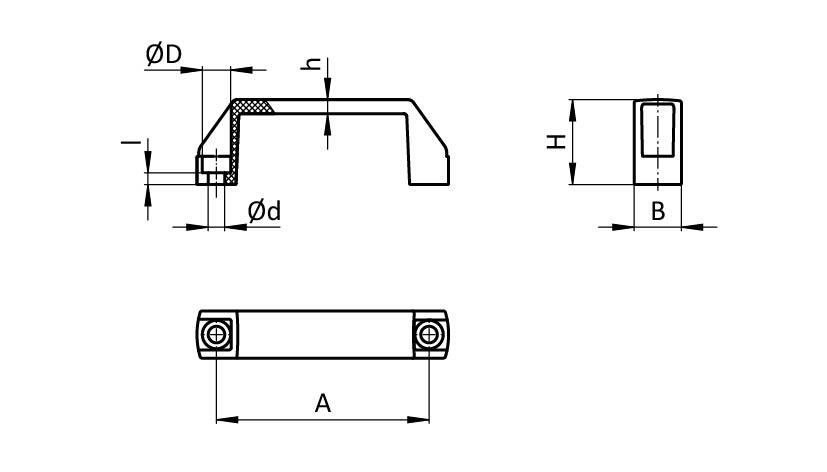

Part #	H (mm)	A (mm)	B (mm)	h (mm)	Ød (mm)	ØD (mm)	for Screw	l (mm)
0850003✓ Selected	36.0	90.0	20.0	6.0	7.0	12.0	M6	5.0
0850004	40.0	120.0	26.0	7.0	8.3	15.0	M8	6.0
0850005	50.0	180.0	28.0	8.0	8.1	14.0	M8	9.0

Color: Black
Description: To mount on doors, flaps and aluminum profiles
Fastening: From the front, using socket head screws; from the back using inserted hexagon nuts or hexagon cap screws
Material: Aluminum
Surface: Powder coated

Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces

From the FATH catalogue (IH-US-EN, p. 291)
