FATH

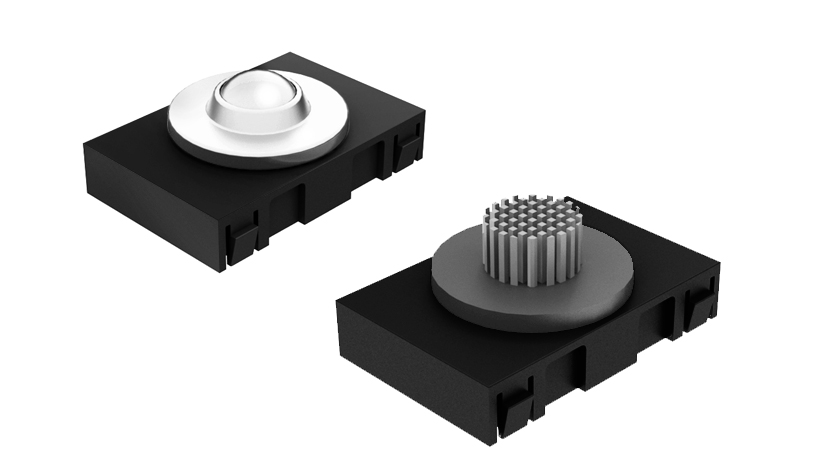

Cage for Ball / Brush Insert D24
Part #: 062ACD2491ESD.50
A sturdy cage for roller track profiles AL, to support a D24 ball or brush insert
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 8 g
- ECLASS
- 36120491
- Category
- Components for Roller Tracks AL
Description 062ACD2491ESD.50
- Color
Black
- Description
A sturdy cage for roller track profiles AL, to support a D24 ball or brush insert
- Material
Plastic PA, carbon fiber reinforced
- Specials
Other materials, other colors on request
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 10 pieces |
| Model | For roller tracks AL |

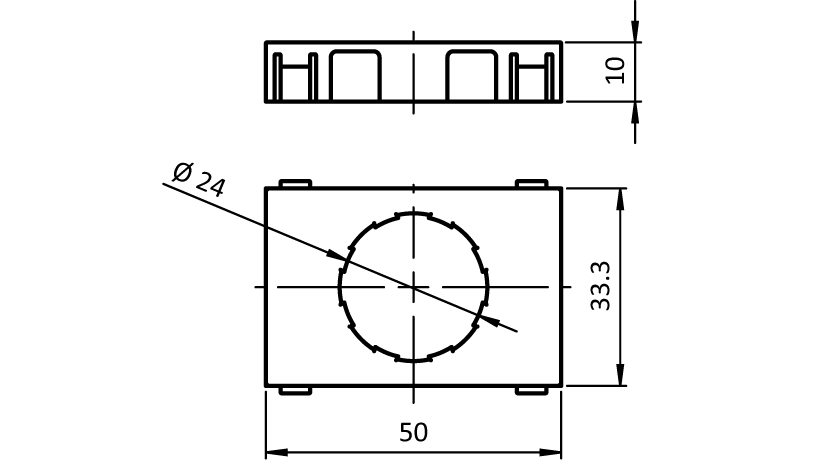

Drawing
From the FATH catalogue (EC-EN, p. 875)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
