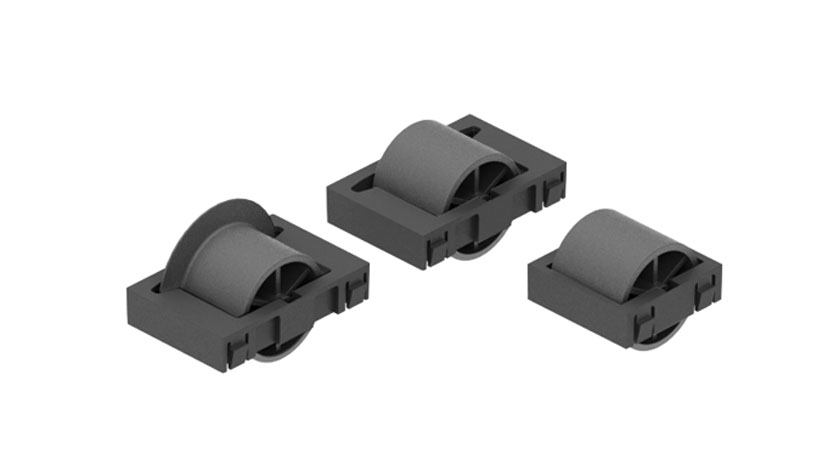

Cage for Rollers R28
Part #: 062ACR2874.33 · 6 variants
A sturdy cage for roller track profiles AL, to support a roller R28 by means of an axle cage L50 also suitable for roller R28 with flange
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 5 g
- ECLASS
- 36120491
- Category
- Components for Roller Tracks AL
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Fig. | ESD | Color | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 062ACR2874.33✓ Selected | L33 | ② | - | Gray ≈ RAL 7042 | |
| 062ACR2874.50 | L50 | ① | - | Gray ≈ RAL 7042 | |
| 062ACR2891.33 | L33 | ② | - | Black | |
| 062ACR2891.50 | L50 | ① | - | Black | |
| 062ACR2891ESD.33 | L33 | ② | ESD | Black | |
| 062ACR2891ESD.50 | L50 | ① | ESD | Black |
Description 062ACR2874.33
- Color
Black, gray
- Description
A sturdy cage for roller track profiles AL, to support a roller R28 by means of an axle
cage L50 also suitable for roller R28 with flange
- Material
Standard version: Plastic PA, glass fiber reinforced
ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
- Specials
Other materials, other colors on request
Properties
| Profile Type | Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 100 pieces |
| Model | For roller tracks AL |

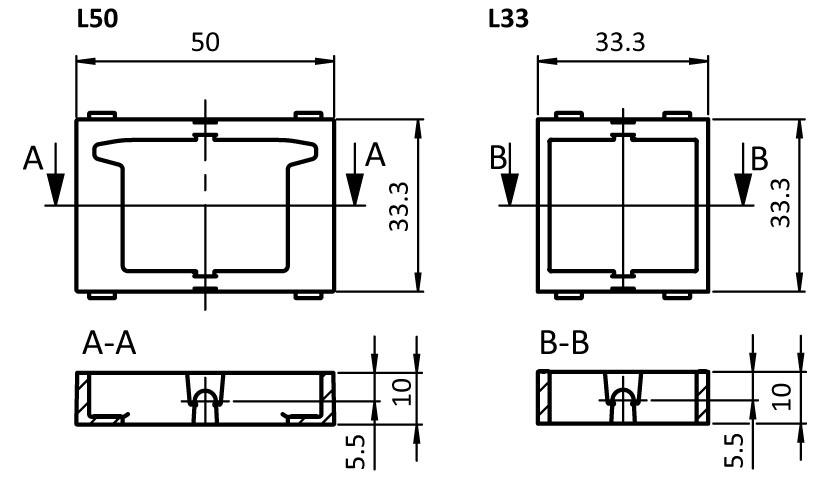

Drawing
From the FATH catalogue (EC-EN, p. 869)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
