Central Butt Connector B 180° +/-45°
Part #: 099B0811S01 · 2 variants
End-to-end connection of two aluminum profilesof the same type; a blind or through hole must be drilledbefore the assembly; bendable from 90° to 180°
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 28 g
- ECLASS
- 23360290
- Category
- Central Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | SW (mm) | D (mm) | Profile | A (mm) | B (mm) | L (mm) | d (mm) | b (mm) | Slot N (mm) | t (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 099B0811S01✓ Selected | 4 | 7.1 | B | 31.0 | 10.0 | 75.0 | Ø11 | 18.0 | 8 | 22.0 | |
| 099B1017S01 | 6 | 9.8 | B | 37.5 | 15.0 | 100.0 | Ø17 | 22.5 | 10 | 31.0 *(1) 34.0 *(2) 36.0 *(3) |
Description 099B0811S01
- Description
End-to-end connection of two aluminum profilesof the same type; a blind or through hole must be drilledbefore the assembly; bendable from 90° to 180°
- Material
Tie-rod: Stainless steel
Bushes: Steel
- Surface
Tie-rod: Plain
Bushes: Zinc plated
- Tip
Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50
- Tip 2
Compatible Cover Cap for Central Connector B, Slot 10 see 091107
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Steel / stainless steel |

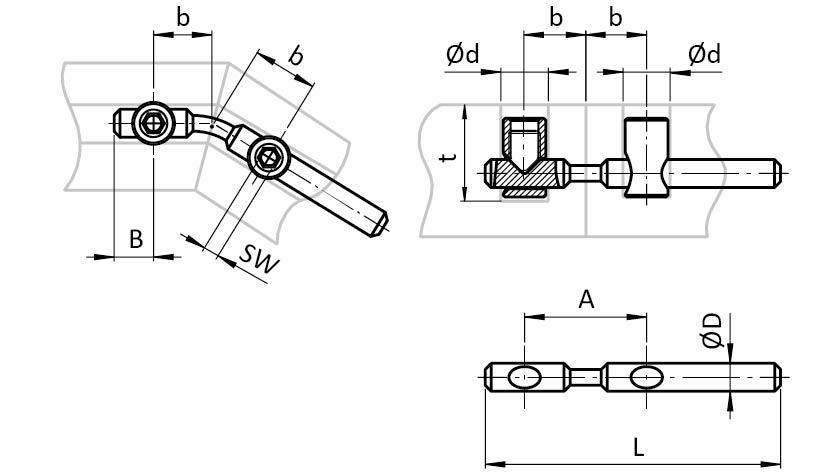

Drawing
From the FATH catalogue (EC-EN, p. 492)
