FATH

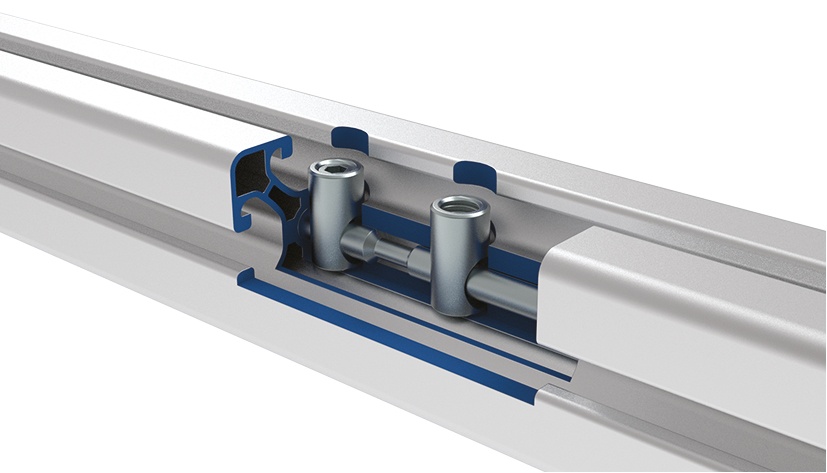

Central Butt Connector I 180° +/-45°
Part #: 099B0811S04

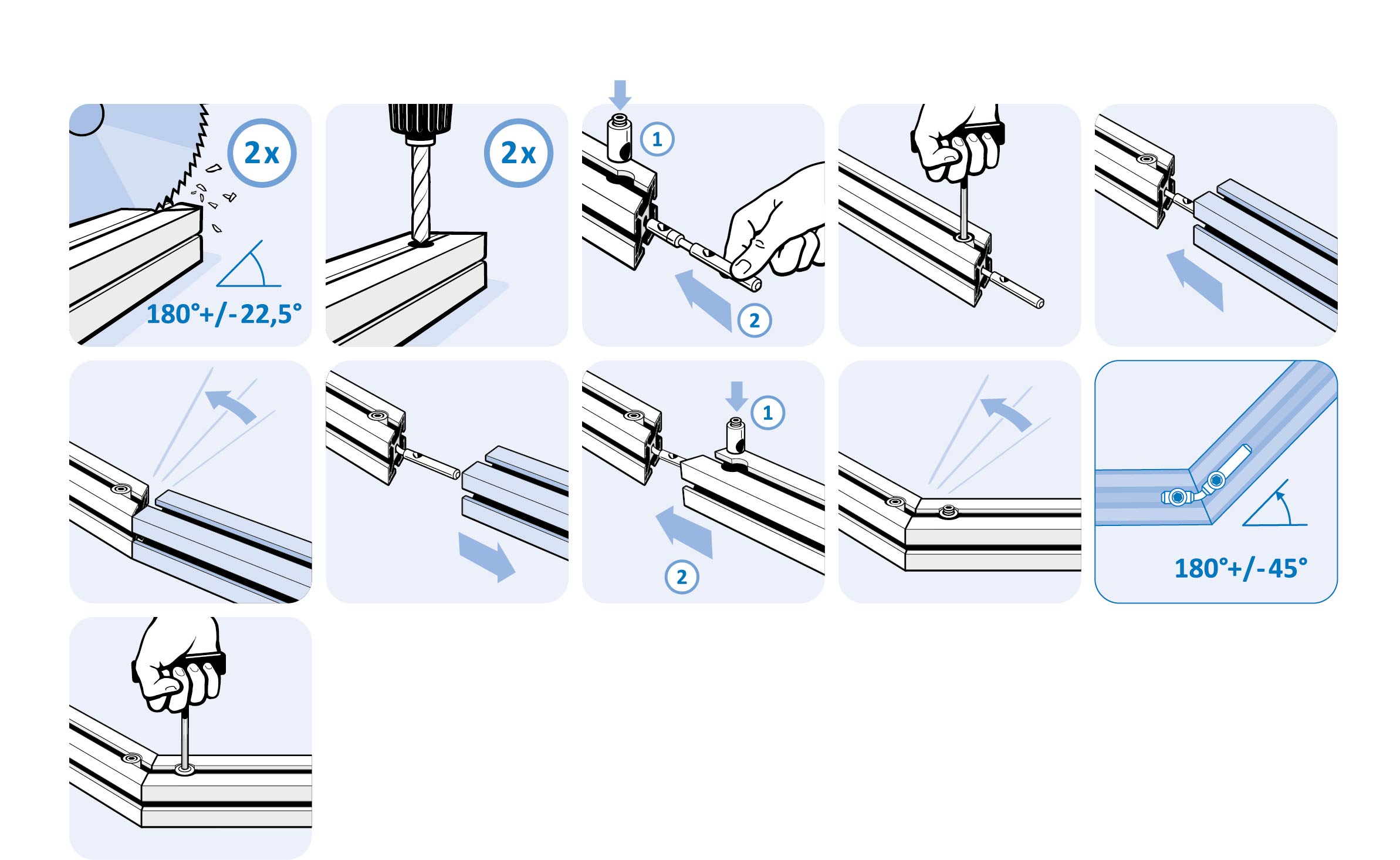

End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 90° to 180°
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 25.6 g
- ECLASS
- 23360290
- Category
- Central Connectors
Description 099B0811S04
- Description
End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 90° to 180°
- Material
Tie-rod: Stainless steel
Bushes: Steel
- Surface
Tie-rod: Plain
Bushes: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Steel / stainless steel |

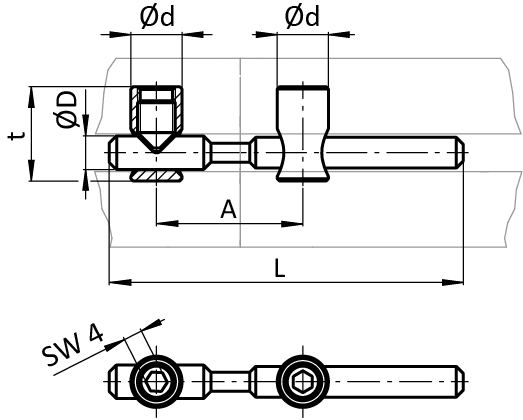

Drawing
From the FATH catalogue (EC-EN, p. 490)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
