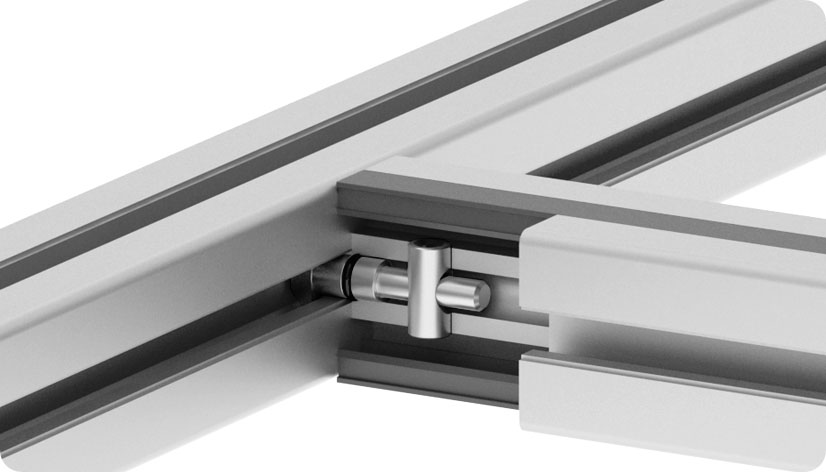

Central Connector B, Bush 9.8 / Slot 10
Part #: 099B10101000 · 2 variants

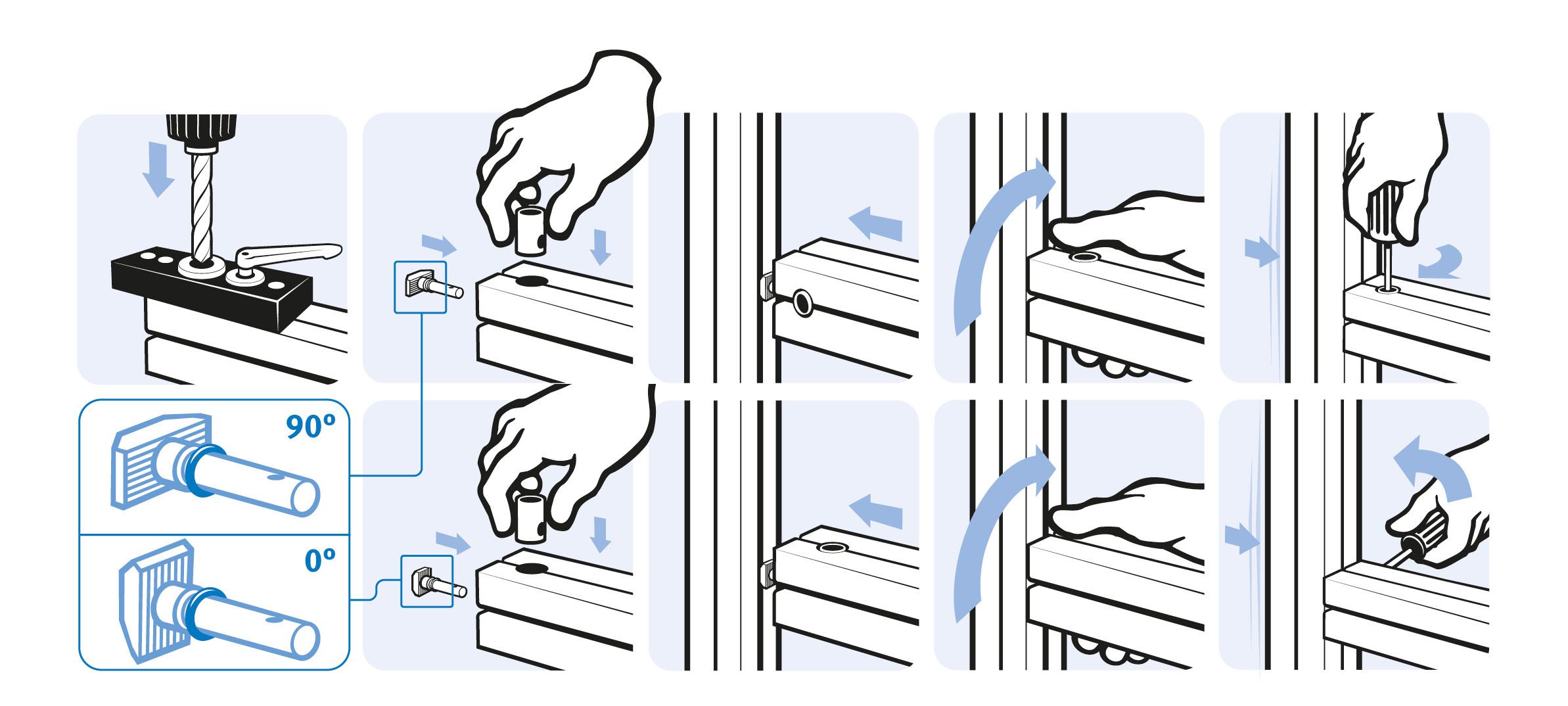

To connect two aluminum profiles at right angles; a through hole must be drilled into one of the profiles to provide access to the tightening screw, the slot walls are nor taffected by this; the bush flush fits with the slot base, thus leaving both slots free to use; the slot can be completely covered with a cover profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 29 g
- ECLASS
- 23360290
- Category
- Central Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | SW (mm) | D (mm) | Version | Profile | A (mm) | B (mm) | L (mm) | d (mm) | b (mm) | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 099B10101000✓ Selected | 3 | 6.8 | 0° | B | 19.4 | 5.3 | 45.6 | Ø9.8 | 22.5 | 10 | |
| 099B10101090 | 3 | 6.8 | 90° | B | 19.4 | 5.3 | 45.6 | Ø9.8 | 22.5 | 10 |
Description 099B10101000
- Description
To connect two aluminum profiles at right angles; a through hole must be drilled into one of the profiles to provide access to the tightening screw, the slot walls are nor taffected by this; the bush flush fits with the slot base, thus leaving both slots free to use; the slot can be completely covered with a cover profile
- Material
Steel
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Zinc plated / plain |

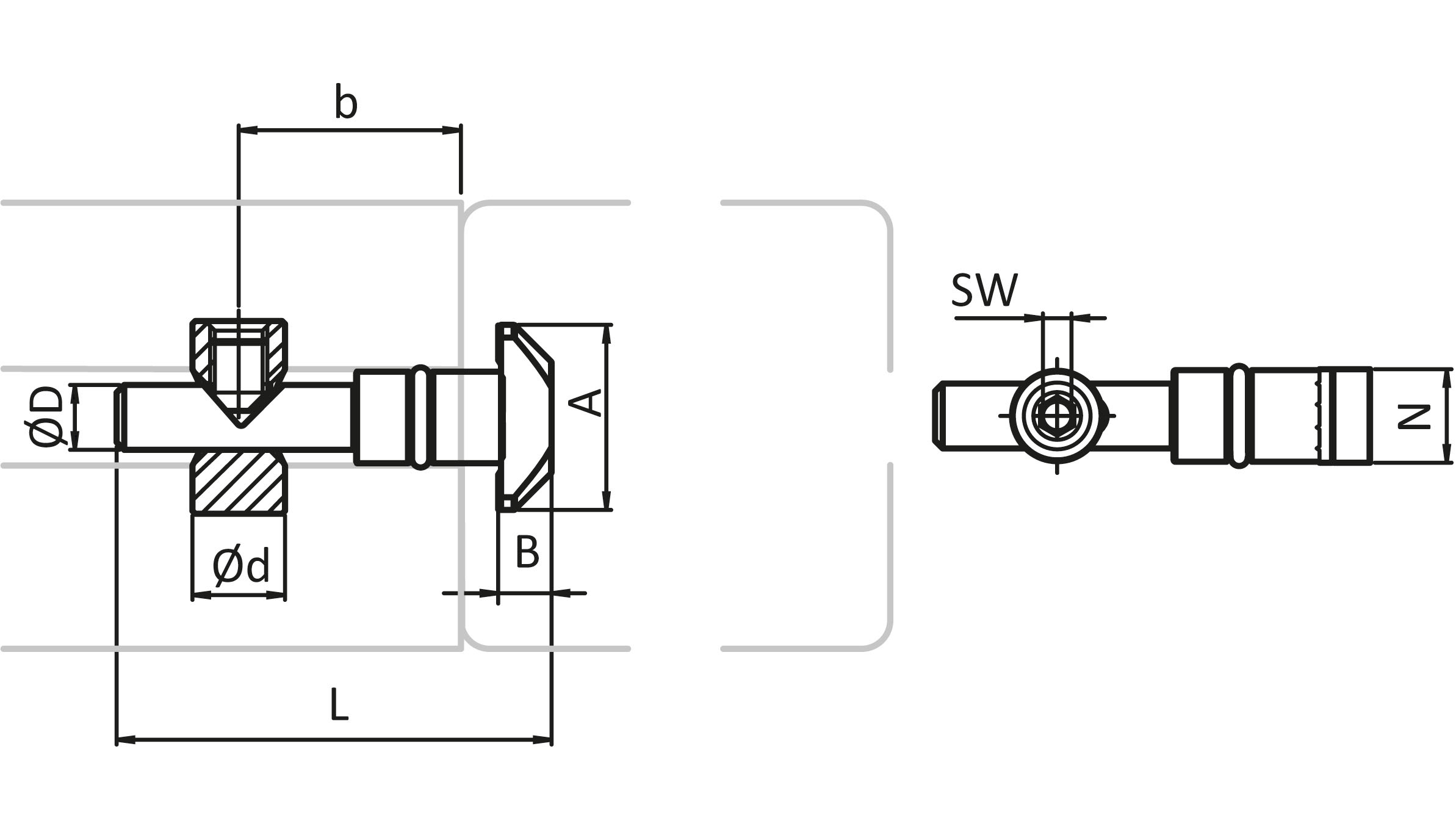

Drawing
From the FATH catalogue (EC-EN, p. 487)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
