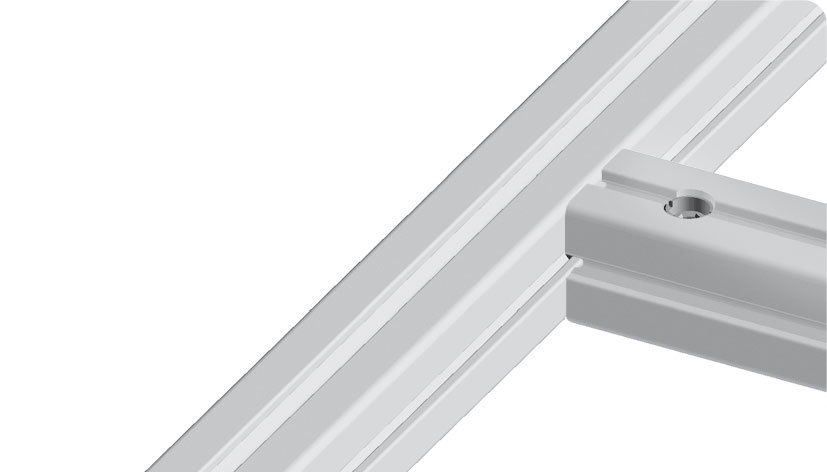

Central Connector B, Slot 8 and Slot 10
Part #: 099B08110700 · 6 variants
To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screw
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 21 g
- ECLASS
- 23360290
- Category
- Central Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | SW (mm) | D (mm) | Version | Profile | A (mm) | B (mm) | L (mm) | d (mm) | b (mm) | Slot N (mm) | t (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 099B08110700✓ Selected | 4 | 7.1 | 0° | B | 15.5 | 4.8 | 33.0 | Ø11 | 18.0 | 8 | 22.0 | 10 pieces | |
| 099B08110700S01 | 4 | 7.1 | 0° | B | 19.6 | 5.5 | 40.0 | Ø11 | 18.0 | 8 / 10 | 22.0 | 10 pieces | |
| 099B08110790 | 4 | 7.1 | 90° | B | 15.5 | 4.8 | 33.0 | Ø11 | 18.0 | 8 | 22.0 | 10 pieces | |
| 099B08110790S01 | 4 | 7.1 | 90° | B | 19.6 | 5.5 | 40.0 | Ø11 | 18.0 | 8 / 10 | 22.0 | 10 pieces | |
| 099B10171000 | 6 | 9.8 | 0° | B | 19.6 | 5.5 | 45.5 | Ø17 | 22.5 | 10 | 31.0 *(1) 34.0 *(2) 36.0 *(3) 41.0 *(4) | 10 pieces | |
| 099B10171090 | 6 | 9.8 | 90° | B | 19.6 | 5.5 | 45.5 | Ø17 | 22.5 | 10 | 31.0 *(1) 34.0 *(2) 36.0 *(3) 41.0 *(4) | 10 pieces |

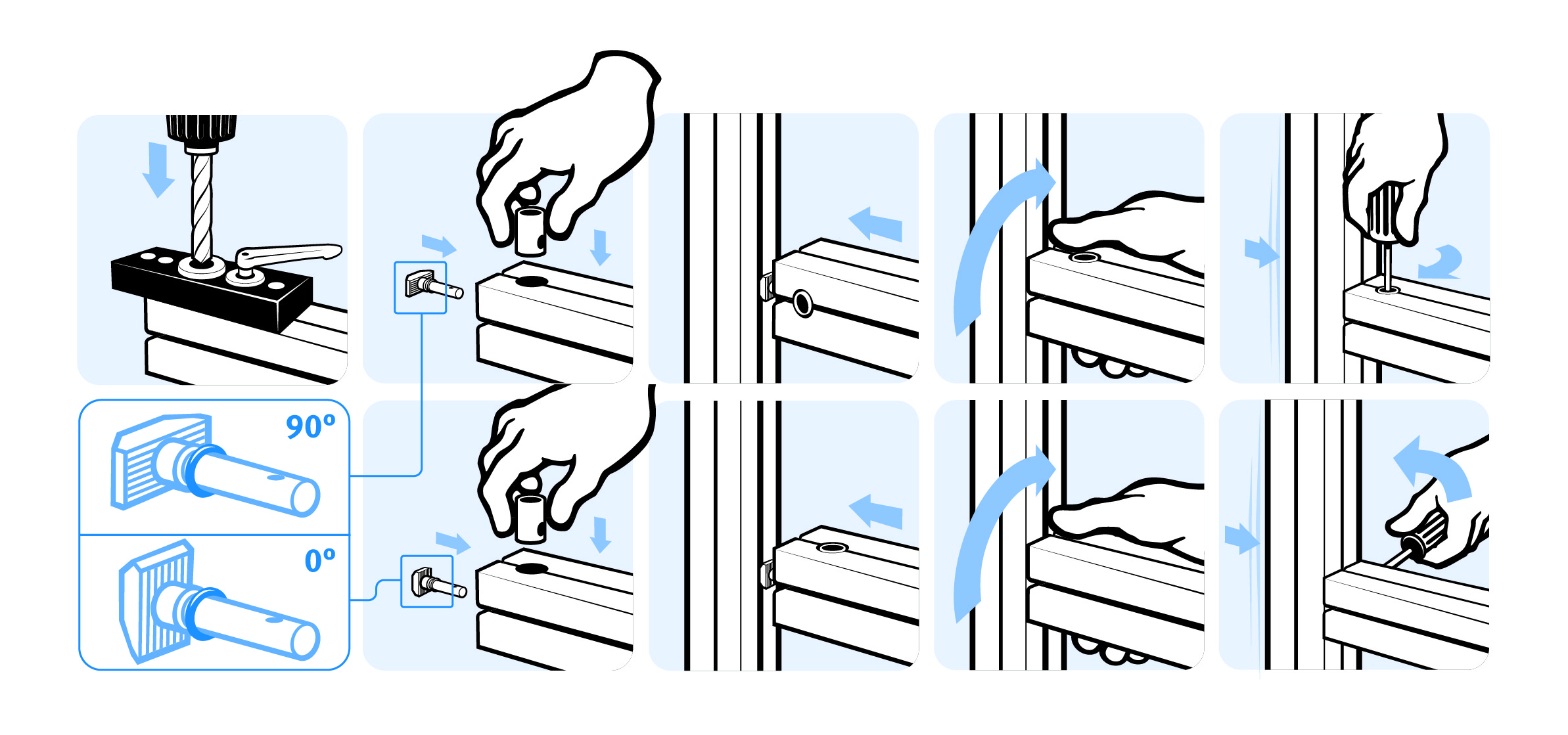

Description 099B08110700
- Description
To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screw
- Material
Zinc plated / plain
- Surface
Zinc plated
- Tip
**Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut
- Tip 2
Compatible Cover Cap for Central Connector B, Slot 10 see 091107
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Zinc plated / plain |

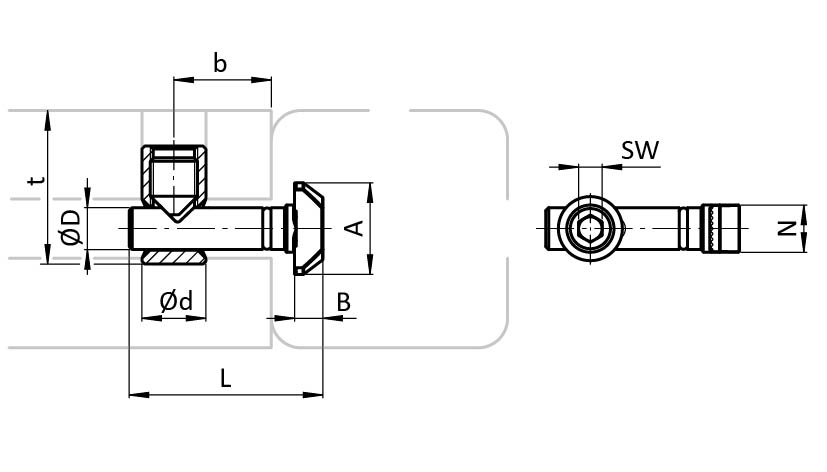

Drawing
From the FATH catalogue (EC-EN, p. 485)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
