FATH
Central Connector B Universal, Slot 10
Part #: 099B101710

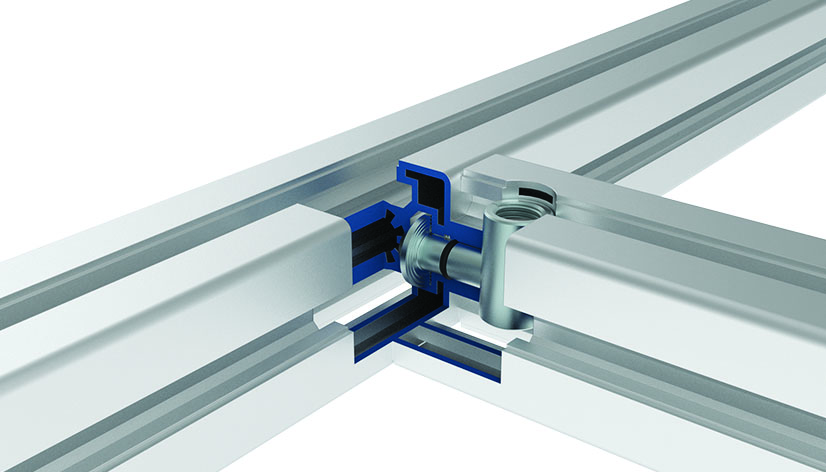

To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screw
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 63 g
- ECLASS
- 23360290
- Category
- Central Connectors
Description 099B101710
- Description
To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screw
- Material
Steel
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Steel |

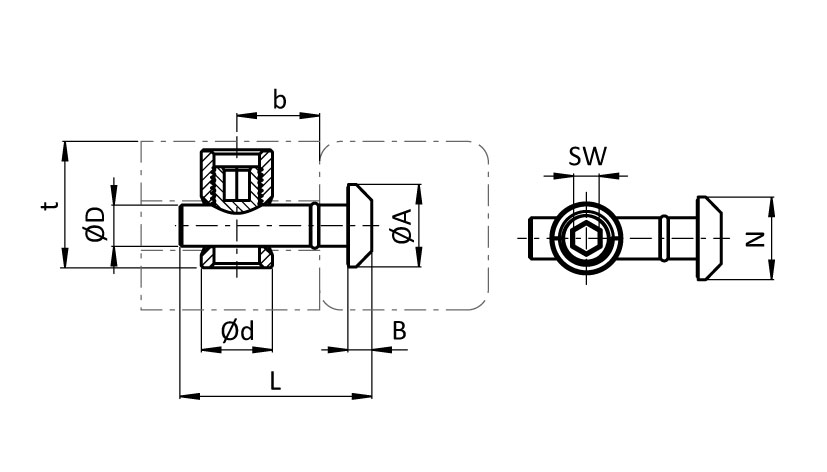

Drawing
From the FATH catalogue (EC-EN, p. 486)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
