FATH

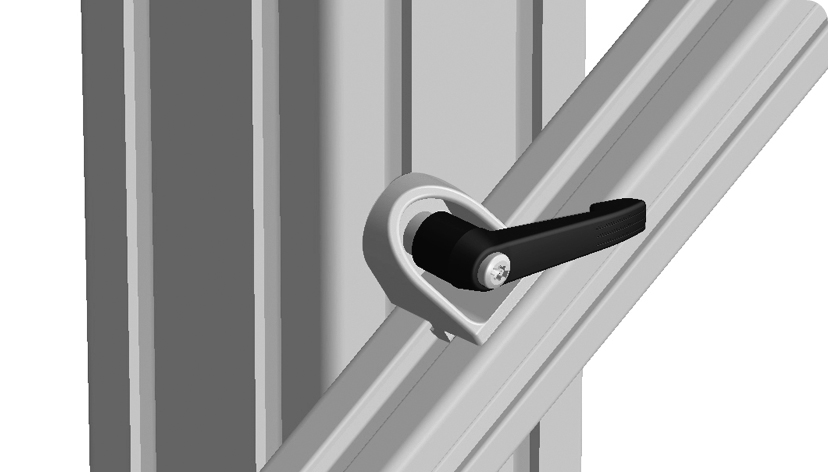

Clamping Angle I 30 with Locking Lever, Slot 6
Part #: 093WKF301N06A · 2 variants
To connect aluminum profiles easily and with flexibility
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 64 g
- ECLASS
- 23360290
- Category
- for Profile 30, Clamping Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Surface | Color | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 093WKF301N06A✓ Selected | I | Powder coated | Alu color | 6 | |
| 093WKF301N06R | I | Plain | - | 6 |
Description 093WKF301N06A
- Color
Alu color
- Description
To connect aluminum profiles easily and with flexibility
- Fastening
Using M6 screw
- Material
Bracket: Zinc die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced
Mechanic: Blue-galvanised steel (RoHS conform)
- Specials
Other surfaces, other colors on request
- Surface
Plain / powder coated
- Tip
Other slots on request
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 6 |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

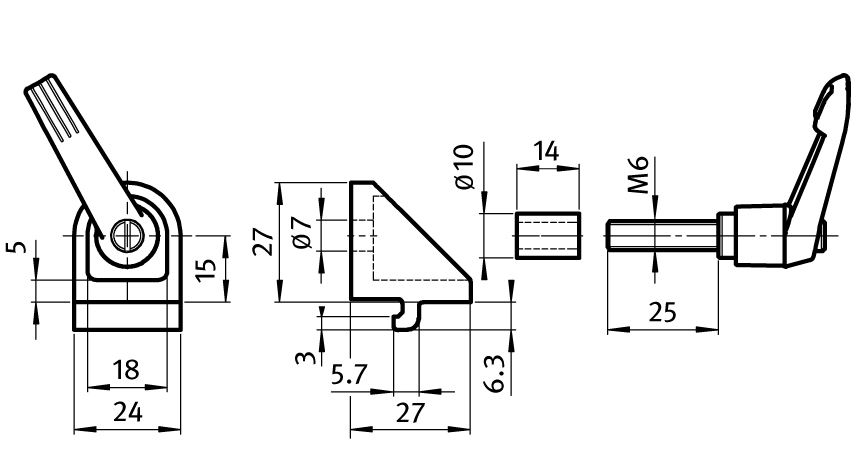

Drawing
From the FATH catalogue (EC-EN, p. 611)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
