FATH

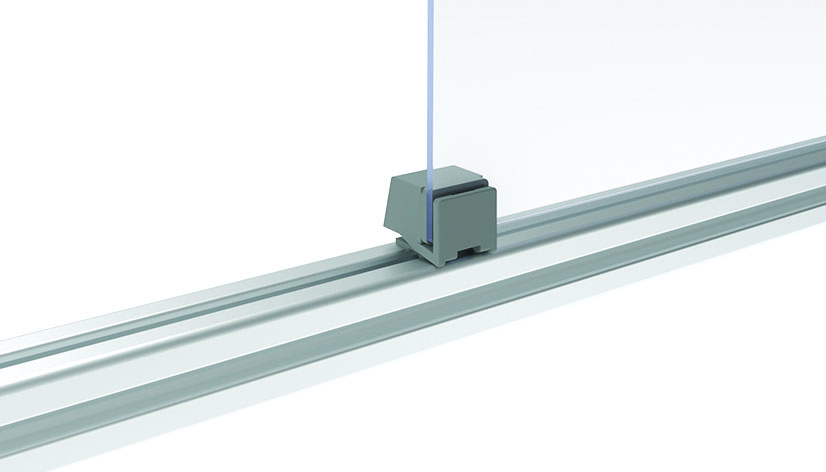

Clip Block 13, Gray
Part #: 094311S02
To attach panels to aluminum profiles without screws or tools
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 3.4 g
- ECLASS
- 23360492
- Category
- T-hammer, Clip Blocks
Description 094311S02
- Color
Gray ≈ RAL 7042
- Description
To attach panels to aluminum profiles without screws or tools
- Material
Plastic PA, glass fiber reinforced
- Specials
Customized hammer, other colors on request
- Tip
Compatible Spacer see 094901S03
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 5 |
| Pack Quantity | 100 pieces |
| Model | Plastic PA, Slot 5 |
| Fixation Span | Panel units with a thickness of 1 - 6 mm |

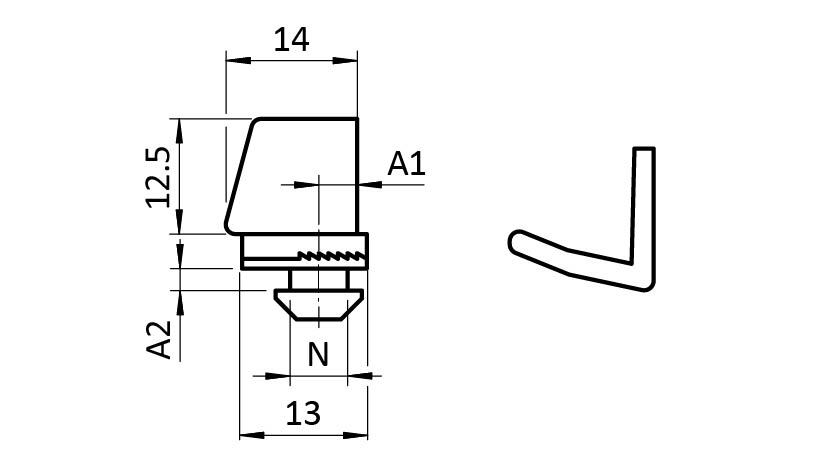

Drawing
From the FATH catalogue (EC-EN, p. 928)
