FATH

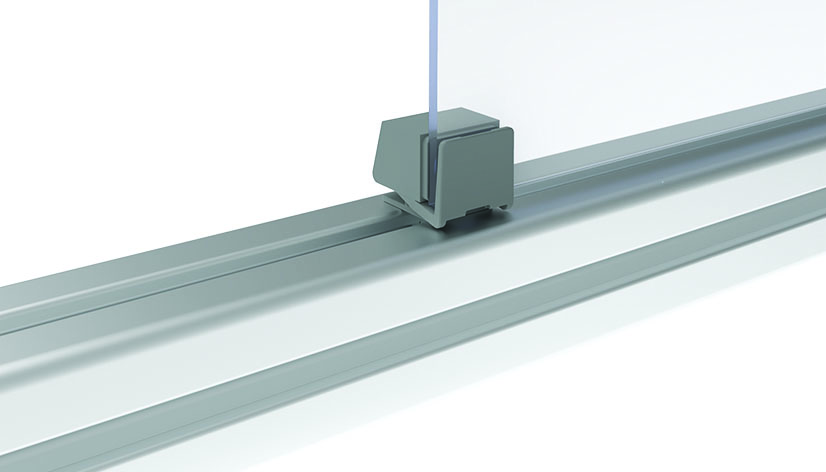

Clip Block 14, Gray

Part #: 094202S03 · 4 variants

To attach panels to aluminum profiles without screws or tools

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

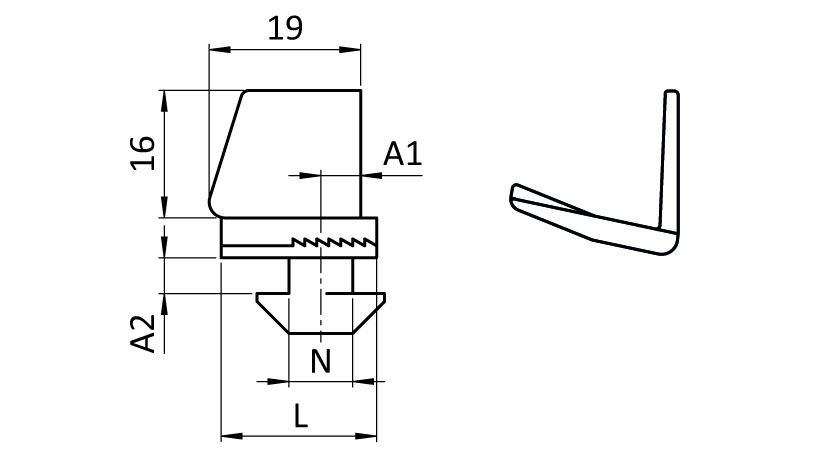

Part #	Profile	L (mm)	Color	Slot N (mm)	A2 (Profile) (mm)	A1 (mm)
094202S03✓ Selected	B	19.5	Gray ≈ RAL 7004	8	2.2 (2.2)	7.0
094203S05	I	26.0	Gray ≈ RAL 7042	8	4.5 (4.5)	11.5
094204S01	I	19.5	Gray ≈ RAL 7042	8	4.5 (4.5)	5.0
094205S04	B	26.0	Gray ≈ RAL 7004	10	5.8 (6.0)	14.0

Profile Type	Profile Type B
Slot Size	Slot 8
Pack Quantity	100 pieces
Model	Plastic PA, Slot 8, 10
Fixation Span	Panel units with a thickness of 1 - 9 mm

From the FATH catalogue (EC-EN, p. 930)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.

Referenced in the description — nuts, plates, caps, assembly sets.
