FATH
Clip Cable Binder - 1 chamber - with Hammer
Part #: 093504N08 · 5 variants
To fix cables without the need for cable ties, can be opened and closed again; can be mounted into the slot by a quarter turn
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 7 g
- ECLASS
- 27140790
- Category
- T-hammer, Cable Fixation Blocks
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Slot N (mm) | A2 (Profile) (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 093504N08✓ Selected | B | 8 | 2.0 (2.0) | 10 pieces | |
| 093505N08 | I | 8 | 4.5 (4.5) | 10 pieces | |
| 093506N10 | B | 10 | 5.9 (6.0) | 10 pieces | |
| 093510N05 | I | 5 | 1.6 (1.8) | 100 pieces | |
| 093512N6,5 | - | 6.5 (0.256“) | 2.2 | 100 pieces |
Description 093504N08
- Color
Black
- Description
To fix cables without the need for cable ties, can be opened and closed again; can be mounted into the slot by a quarter turn
- Material
Plastic PA
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8 |
| Application Area | Industrial Work Stations |
| Pack Quantity | 10 pieces |
| Model | 1 chamber |

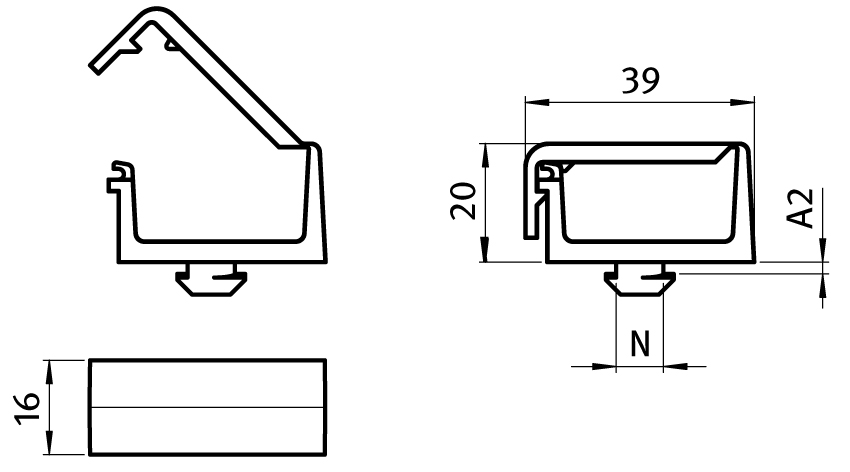

Drawing
From the FATH catalogue (EC-EN, p. 1021)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
