FATH
Clip clamp , for Vario Clamping Blocks
Part #: 09452RA20
For height adjustment of the contact surfaces, for flush mounting of panels
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 2.8 g
- ECLASS
- 23360492
- Category
- T-hammer, Vario Clamping Blocks · Panel Fixation Blocks D28
Description 09452RA20
- Color
Transparent (colorless)
- Description
For height adjustment of the contact surfaces, for flush mounting of panels
- Material
Plastic PC
- Tip
Compatible Vario Clamping Blocks see 094523M6, 094522M6CS and 094524M6
Properties
| Profile Type | Profile Type B |
|---|---|
| Modular Dimension | Modular Dimension D28 |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | Plastic PC |

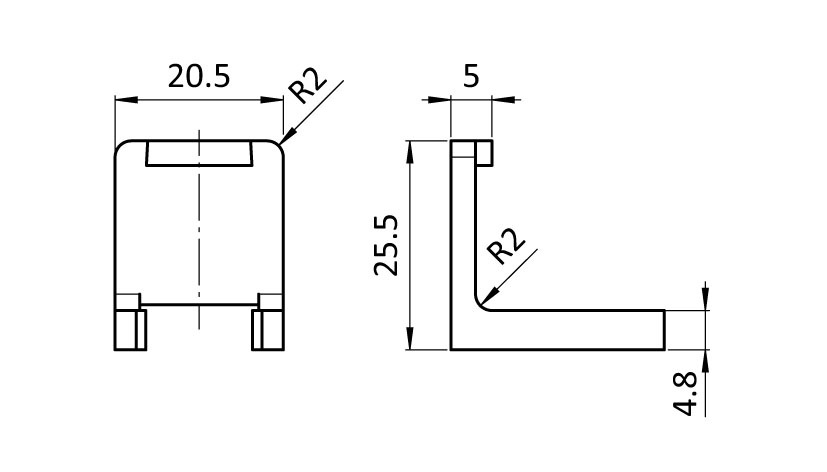

Drawing
From the FATH catalogue (EC-EN, p. 933)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
