FATH

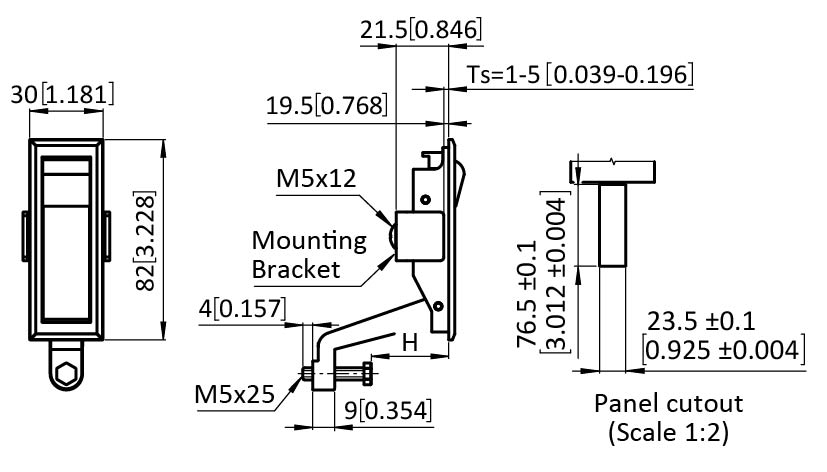

Compression Trigger Latch 76.5 x 23.5

Part #: 0810093 · 4 variants

For easy, secure and compressive latching and locking of doors and flaps; Wide range of inserts, cams and accessories

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Part #	Material	H (mm)	Surface	Color
0810093✓ Selected	Zinc die-cast	23 - 46	Chrome plated	Chrome
0810093E	Stainless steel SS304	23 - 46	-	-
0810093S01	Zinc die-cast	23 - 46	Powder coated	Black
0810093S03	Zinc die-cast	35 - 58	Powder coated	Black

Color

Handle: Black / chrome / -

Trigger: Black / chrome / -

Housing: Black / chrome / -

Description

For easy, secure and compressive latching and locking of doors and flaps;

Wide range of inserts, cams and accessories

Material

Handle: Zinc die-cast / stainless steel SS304

Trigger: Zinc die-cast / stainless steel SS304

Housing: Zinc die-cast / stainless steel SS304

Mounting bracket: Steel

Screws: Steel / stainless steel SS304

Return spring: Spring steel SS9260

Pin: Steel

Surface

Handle: Powder coated / chrome plated / plain

Trigger: Powder coated / chrome plated / plain

Housing: Powder coated / chrome plated / plain

Mounting bracket: Zinc plated

Screws: Zinc plated

Pin: Zinc plated

Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces

From the FATH catalogue (IH-US-EN, p. 73)
