FATH

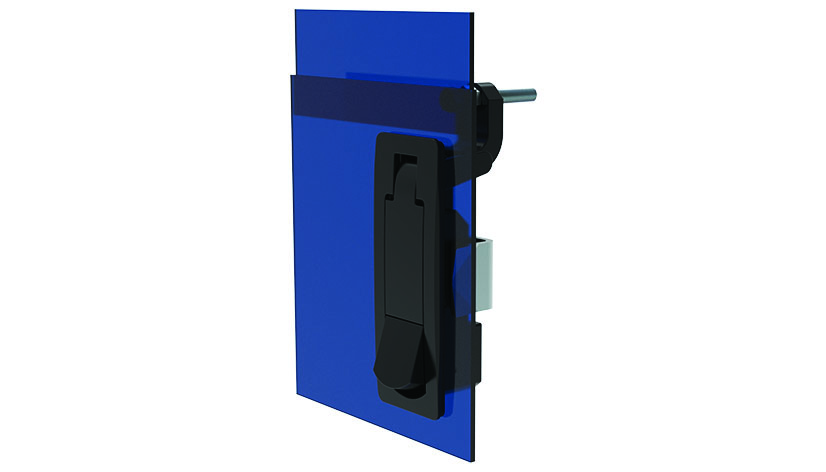

Compression Trigger Latch 86 x 25, Black, NEMA 4

Part #: 0850240 · 12 variants

For easy, secure and compressive latching and locking of doors and flaps; Wide range of inserts, cams and accessories

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Part #	H (mm)	Insert type	Trigger	Arm
0850240✓ Selected	1 - 24	Non-locking	Raised	Short
0850241	1 - 24	Non-locking	Flush	Short
0850242	1 - 24	Key locking (Keyed FH751)	Raised	Short
0850243	1 - 24	Phillips Insert	Raised	Short
0850244	1 - 24	Key locking (Keyed FH751) with shutter	Raised	Short
0850245	1 - 24	Female hexagon 4.5 mm	Raised	Short
0850246	23 - 46	Non-locking	Raised	Long
0850247	23 - 46	Non-locking	Flush	Long
0850248	23 - 46	Key locking (Keyed FH751)	Raised	Long
0850249	23 - 46	Phillips Insert	Raised	Long
0850250	23 - 46	Key locking (Keyed FH751) with shutter	Raised	Long
0850251	23 - 46	Female hexagon 4.5 mm	Raised	Long

Color

Handle: Black

Trigger: Black

Housing: Black

Seals: Black

Description

For easy, secure and compressive latching and locking of doors and flaps;

Wide range of inserts, cams and accessories

Material

Handle: Zinc die-cast

Trigger: Zinc die-cast

Housing: Zinc die-cast

Mounting bracket: Steel

Screws: Steel

Arm: Zinc die-cast

Nut: Steel

Seals: Rubber NBR

Surface

Handle: Powder coated

Trigger: Powder coated

Housing: Powder coated

Mounting bracket: Zinc plated

Screws: Zinc plated

Arm: Zinc plated

Nut: Zinc plated

Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
IP Rating	IP65 / NEMA 4

From the FATH catalogue (IH-US-EN, p. 72)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
