FATH

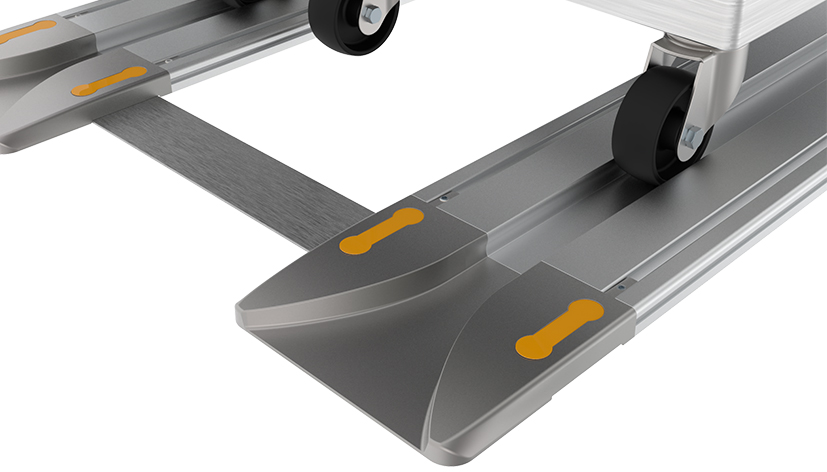

Connecting Element for Guiding Rail FIFO (Set)
Part #: 02082D
For parallel connection of two guiding rails FIFO, as spacer for aligning the track; To be screwed on infeed caps with enclosed screws
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 692.2 g
- ECLASS
- 21070492
- Category
- Guiding Rails FIFO
Description 02082D
- Description
For parallel connection of two guiding rails FIFO, as spacer for aligning the track;
To be screwed on infeed caps with enclosed screws
- Material
Stainless steel
- Set
2 connecting elements
8 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16
- Surface
Plain
- Tip
Compatible Guiding Rail FIFO see 02082P.1200
Compatible Infeed Cap for Guiding Rail FIFO (set) see 02082CCS01
Properties
| Application Area | Industrial Work Stations, Intralogistics, Shopfloor |
|---|---|
| Pack Quantity | 1 piece |
| Model | Stainless steel |

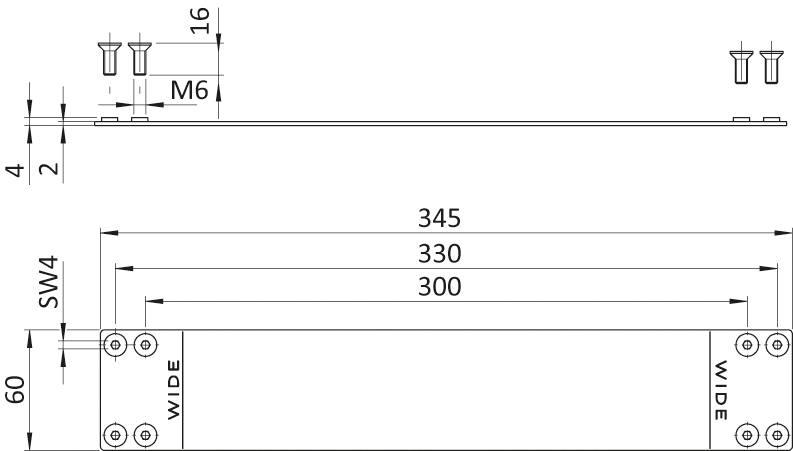

Drawing
From the FATH catalogue (SI-EN, p. 244)
